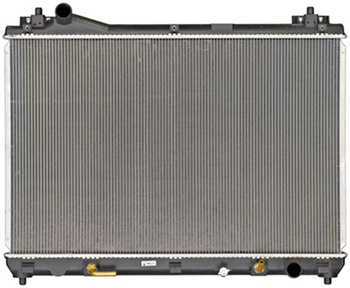

NZA1024X is a replacement engine cooling radiator for selected Suzuki Grand Vitara JT 2.4/3.2 Auto models. It combines an aluminium core with plastic tanks.

Selected Vehicle Applications:

• Suzuki Grand Vitara JT/JB424 2.4L J24B petrol, automatic, 11/19
• Suzuki Grand Vitara JT 3.2L V6 N32A petrol, automatic, 11/15

Technical Specifications:

• NZA Part Number: NZA1024X
• Transmission: Automatic
• Core Construction: Aluminium with plastic end tanks
• Core Dimensions: 690x450x16mm
• Hose Outlets: 34mm inlet, 34.5mm outlet

Note: Core measurements describe the cooling matrix only, excluding tanks and mounting brackets.

Cross-Reference Part Numbers:

• OEM: 17700-78K00, 17700-78K10
• Jayrad: JR1024J
• Adrad: SUZ010
• Koyorad: PL052110
• Repco: RAD1024X

Fitment Note:

Please confirm mounting positions, hose connections, transmission cooler fittings, and physical dimensions against your existing factory radiator prior to installation. Compare the lower tank, including whether a separate heater-pipe connection is fitted.

Always use the vehicle manufacturer’s specified coolant type and bleeding procedure when fitting. Inspect hoses, cap, and cooling fans as part of installation.

Warranty Details

Duration: 2 years or 50,000 kilometres (whichever happens first).
