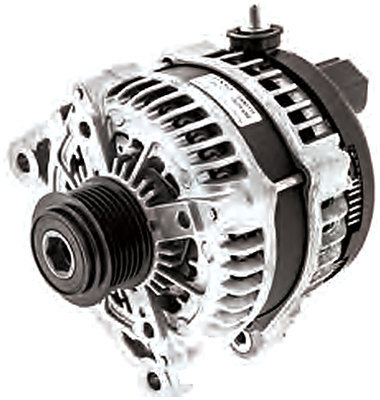

Jaylec 65-8563 Alternator

12V 180A replacement alternator for selected Range Rover Evoque L538 models with the 2.2L 224DT diesel engine. Features a 54mm six-rib pulley and 138mm mounting centres.

Technical Specifications

• Brand: Jaylec
• Part number: 65-8563
• Voltage: 12V
• Rated output: 180A
• Adjuster hole: 2 x 11, 2 x M10
• Pivot holes: 2 x 11, 2 x M10
• Adjuster-to-pivot centres: 138 mm
• Inside foot-to-foot / pivot-lug dimension: 2 x 46 mm
• Pulley diameter: 54 mm
• Pulley type: 6PV

Part Number Cross References

Match the original alternator number and physical specification before ordering.

• 104210-6360, 104210-6361, 104210-6362, 104210-6363, BJ32-10300-AC, BJ32-10300-AD, LR028116, LR031026

Vehicle Application List

• Land Rover Range Rover Evoque L538, 2.2L 224DT diesel (TD4/SD4), 2011–2015.
• Land Rover Freelander 2 LV, 2.2L TD4/SD4 diesel, from 2011; confirm the original alternator reference and connector for later builds.

Applications apply to the specified engine and alternator configuration. Compare the original unit number, electrical connection and pulley before ordering.

Related air filters: K&N 33-2991 is the related Evoque 2.2L diesel filter; K&N 33-2414 is listed for Freelander 2.2L diesel applications, including 2011. The two vehicle airboxes use different filters. These are vehicle air-filter references; confirm the vehicle year and original airbox before ordering.
