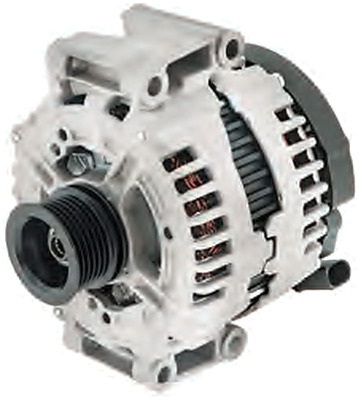

12V 180A replacement alternator for selected Mercedes-Benz petrol models, including E-Class, S-Class and CLK. Features a fixed six-rib 50mm pulley; check the engine and chassis combinations below. Fitment note: This is the fixed-pulley version. Match the original pulley and electrical connection; equal amperage does not establish control-system or pulley compatibility. Technical Specifications - Part number: 65-1071-1
- Brand: Jaylec
- Voltage: 12V
- Rated output: 180A
- Adjustment mounting hole(s): 1 x 8.5, 1 x 9.5
- Pivot mounting hole(s): 1 x 8.5, 1 x 9.5
- Adjustment-to-pivot centres: 1 x 172, 1 x 163 mm
- Pivot span / lug length: 70 mm
- Pulley diameter: 50 mm
- Pulley section: 6PV
- Weight: 8.0 kg
- Pulley operation: Fixed
Part Number Cross References Match the complete original part number and installation details before ordering. - 0 121 715 006, 0 121 715 014, 0 121 715 114, 0131543502, 0131545602, 272-154-08-02, A 013 154 35 02, A 013 154 56 02
- A 272 154 08 02
Vehicle & Equipment Applications Match the specified vehicle, engine and build range. Where no final year is listed, confirm the particular vehicle before ordering. - Mercedes-Benz · CLK · CLK 500 - 5.5 · A209 · M 273.967 · Petrol · 2006–2010
- Mercedes-Benz · CLK · CLK 500 - 5.5 · C209 · M 273.965 · Petrol · 2006–2009
- Mercedes-Benz · CLS · CLS 350 - 3.5 · C219 · M 272.964 · Petrol · 2004–2010
- Mercedes-Benz · E-Class · E 280 - 3.0 · W211 · M 272.943 · Petrol · 2005–2008
- Mercedes-Benz · E-Class · E 350 - 3.5 · S212 · M 272.980 · Petrol · from 2009 (catalogue does not specify final year)
- Mercedes-Benz · E-Class · E 350 - 3.5 · W211 · M 272.964 · Petrol · 2005–2008
- Mercedes-Benz · E-Class · E 350 - 3.5 · W212 · M 272.980 · Petrol · from 2009 (catalogue does not specify final year)
- Mercedes-Benz · E-Class · E 350 4-matic - 3.5 · S212 · M 272.977 · Petrol · from 2009 (catalogue does not specify final year)
- Mercedes-Benz · E-Class · E 350 4-matic - 3.5 · W212 · M 272.977 · Petrol · 2009–2011
- Mercedes-Benz · E-Class · E 350 CGI - 3.5 · W211 · M 272.985 · Petrol · 2007–2008
- Mercedes-Benz · E-Class · E 350 CGI - 3.5 · W212 · M 272.982, M 272.983 · Petrol · 2009–2011
- Mercedes-Benz · E-Class · E 500 - 5.5 · A207 · M 273.966 · Petrol · from 2010 (catalogue does not specify final year)
- Mercedes-Benz · E-Class · E 500 - 5.5 · C207 · M 273.966 · Petrol · from 2009 (catalogue does not specify final year)
- Mercedes-Benz · E-Class · E 500 - 5.5 · S212 · M 273.971 · Petrol · from 2009 (catalogue does not specify final year)
- Mercedes-Benz · E-Class · E 500 - 5.5 · W211 · M 273.960 · Petrol · 2006–2008
- Mercedes-Benz · E-Class · E 500 - 5.5 · W212 · M 273.971, M 273.970 · Petrol · from 2009 (catalogue does not specify final year)
- Mercedes-Benz · E-Class · E 500 T - 5.5 · S211 · M 273.960 · Petrol · 2006–2009
- Mercedes-Benz · G-Class · G 500 - 5.5 · W463 · M 273.963, M 273.969 · Petrol · from 2008 (catalogue does not specify final year)
- Mercedes-Benz · GL-Class · GL 450 4-matic - 4.7 · X164 · M 273.923 · Petrol · from 2006 (catalogue does not specify final year)
- Mercedes-Benz · GL-Class · GL 500 4-matic - 5.5 · X164 · M 273.963 · Petrol · from 2006 (catalogue does not specify final year)
- Mercedes-Benz · M-Class · ML 350 4-matic - 3.5 · W164 · M 272.967 · Petrol · 2005–2011
- Mercedes-Benz · M-Class · ML 500 - 5.5 · W164 · M 273.963 · Petrol · 2007–2011
- Mercedes-Benz · R-Class · R 350 4-matic - 3.5 · W251, V251 · M 272.967 · Petrol · from 2006 (catalogue does not specify final year)
- Mercedes-Benz · R-Class · R 500 4-matic - 5.5 · W251, V251 · M 273.963 · Petrol · from 2007 (catalogue does not specify final year)
- Mercedes-Benz · S-Class · S 350 - 3.5 · W221 · M 272.965 · Petrol · 2005–2013
- Mercedes-Benz · S-Class · S 350 4-matic - 3.5 · W221 · M 272.975 · Petrol · 2008–2013
- Mercedes-Benz · S-Class · S 450 - 4.7 · W221 · M 273.922 · Petrol · 2005–2013
- Mercedes-Benz · S-Class · S 500 - 5.5 · W221 · M 273.961 · Petrol · 2005–2013
- Mercedes-Benz · SL · 300 - 3.0 · R230 · M 272.949 · Petrol · 2009–2012
- Mercedes-Benz · SL · 350 - 3.5 · R230 · M 272.966 · Petrol · 2006–2012
- Mercedes-Benz · SL · 500 - 5.5 · R230 · M 273.965 · Petrol · 2006–2012
- Mercedes-Benz CL500 C216 — 5.5L petrol, 2006–2010; match the original 180A alternator and LIN connection.
