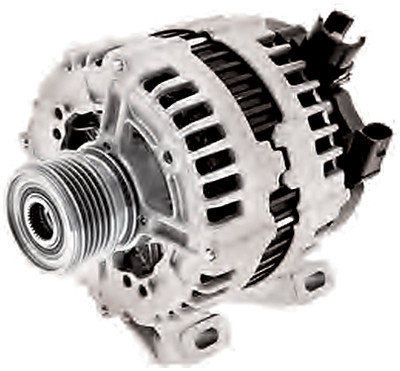

Jaylec 65-1779-1 Alternator

12V 180A replacement alternator for selected Volvo S60, V60 and XC60 2.4L diesel models. Features a 54mm five-rib pulley. Match the engine code and AWD variant against the application list below.

Technical Specifications

• Brand: Jaylec
• Part number: 65-1779-1
• Voltage: 12V
• Rated output: 180A
• Adjuster hole: 1 x 11 mm
• Pivot holes: 2 x 11 mm
• Adjuster-to-pivot centres: 162 mm
• Inside foot-to-foot / pivot-lug dimension: 3 x 32 mm
• Pulley diameter: 54 mm
• Pulley type: 5PV

Part Number Cross References

Match the original alternator number and physical specification before ordering.

• 0 121 715 008, 0 121 715 079, 0 121 715 108, 0 121 715 179, 0 125 811 020, 0 125 811 109, 6G9N-10300-JB, 6G9N-10300-JD
• 30659131, 30659136, 30659341, 30667119, 36000038, 36001341, 36001454

Vehicle Application List

• Volvo S60 II 2.4 D4 AWD D 5244 T21 diesel; from 2015 (end date requires confirmation)
• Volvo V60 2.4 D4 AWD D 5244 T21 diesel; from 2015 (end date requires confirmation)
• Volvo XC60 2.4 D5 AWD D 5244 T20, D 5244 T22 diesel; from 2015 (end date requires confirmation)
• Volvo XC60 2.4 D3 AWD, 2.4 D4 AWD D 5244 T5, D 5244 T16, D 5244 T17, D 5244 T21 diesel; from 2008 (end date requires confirmation)

Applications apply to the specified engine and alternator configuration. Compare the original unit number, electrical connection and pulley before ordering.

Related air filters: K&N 33-2388 is listed for the 2015 Volvo V60 2.4L five-cylinder diesel application. These are air-filter references for the stated vehicles, not alternator interchange numbers. Match the original airbox and filter before ordering.
