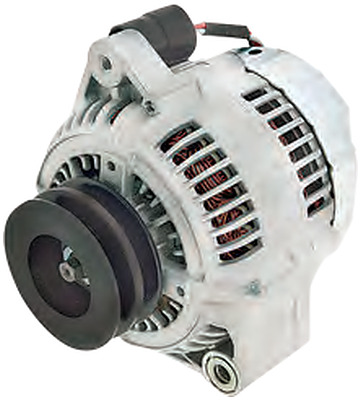

Jaylec 65-8371 Alternator

24V 60A replacement alternator for selected Toyota Coaster 1HZ applications.

Fitment note: Check that the bus uses a 24V system and match the original alternator number, mounting, pulley and electrical connection.

Technical Specifications

• Brand: Jaylec
• Part number: 65-8371
• Voltage: 24V
• Rated output: 60A
• Mounting centres: 165 mm
• Adjuster hole: 1 x M8
• Pivot hole: 1 x 10.5 mm
• Inside foot / pivot-lug dimension: 58 mm
• Pulley type: 2A
• Pulley diameter: 78 mm
• Regulator: Internal

Part Number Cross References

Match the original number and the complete alternator specification before ordering.

• 100211-6230, 100211-6240, 101211-4310, 102211-0420, 102211-0450, 27060-17080
• 27060-17120, 27060-17240

Vehicle Application List

• Toyota Coaster HZB bus, 4.2L 1HZ diesel, 1990–2004; confirm the 24V system and original alternator number

Related air filters: K&N E-2443 is a related option for Coaster 1HZ applications using the matching original filter, including Toyota 17801-66030 or WIX 42159. Confirm the existing filter dimensions and airbox. Confirm the vehicle year, engine and original airbox before ordering the filter. These are air-filter references, not alternator interchange numbers.
