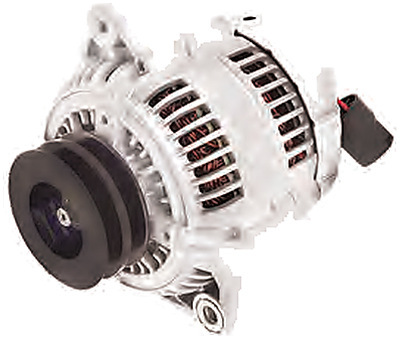

12V 110A replacement alternator for selected Toyota LandCruiser 70/80 Series models with the listed 1HZ and 1HD-T diesel engines. Features a 78mm twin A-section pulley, 165mm mounting centres and a supplied adaptor lead.

Technical Specifications

• Brand: Jaylec
• Part number: 65-8348
• Voltage: 12V
• Amperage: 110A
• Adjustment hole: 1 x M8
• Pivot hole: 1 x 10 mm
• Adjustment-to-pivot distance: 165 mm
• Inside feet / pivot lug dimension: 58 mm
• Pulley diameter: 78 mm
• Pulley section: 2A
• Unit weight: 7.0 kg
• Connection provision: Adaptor lead supplied

Part Number Cross References

Match the original alternator number together with the mounting, pulley and electrical connector.

• BXD1217N, 100211-6120, 100211-7380, 100211-7870, 100211-7940, 101211-7010
• 101211-7011, 101211-7380, 27060-17180, 27060-17230, 27060-17250

Vehicle and Equipment Applications

• Toyota LandCruiser 70/80 Series — HZJ75/HZJ78 and HDJ80/HDJ81V applications with 4.2L 1HZ or 1HD-T diesel engines; confirm build date and original alternator reference.
• Toyota LandCruiser HZJ105 — 4.2L 1HZ diesel, 1998–2007, with the matching original alternator and adaptor lead.
• Toyota LandCruiser PZJ70–PZJ77 — 3.5L 1PZ diesel 4WD, 1990–1994; verify the 12V charging system and original alternator number.

Related air filters: K&N E-2443 is a shared-vehicle reference for selected LandCruiser 4.2L diesel factory airboxes (including the 1993 application). Confirm the vehicle year, engine and original airbox before ordering the filter. These are air-filter references, not alternator interchange numbers.
