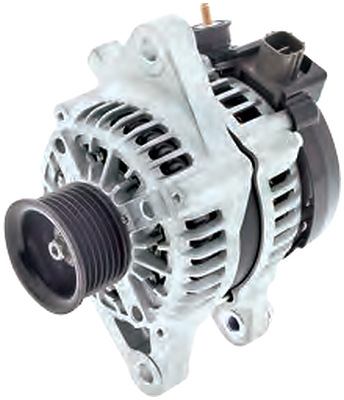

Jaylec 65-8593 Alternator

Jaylec 12V 80A alternator for selected Toyota Hilux and Fortuner TGN applications. Features a 58mm seven-rib pulley, an internal regulator and 170mm adjuster-to-pivot centres.

Technical Specifications

• Brand: Jaylec
• Part number: 65-8593
• Voltage: 12V
• Rated output: 80A
• Adjuster hole: 1 x 10 mm
• Pivot holes: 1 x 10 mm; 1 x M10
• Adjuster-to-pivot centres: 170 mm
• Inside foot-to-foot / pivot-lug dimension: 44 mm
• Pulley diameter: 58 mm
• Pulley type: 7PV
• Regulator: Internal

Part Number Cross References

Match the original alternator number and physical specification before ordering.

• 104210-9000, 104210-9001, 104210-9360, TG104210-9000, 27060-0C021, 27060-0C020

Vehicle Application List

• Toyota Hilux TGN16R, 2.7L 2TR-FE petrol, from 2007; confirm the original unit number for later builds
• Toyota Fortuner TGN, 2.7L 2TR-FE petrol; confirm the exact vehicle build and original alternator configuration

Compare the original unit number, mounting, pulley and electrical connection before ordering.

Related air filters: K&N E-2296 is listed for Hilux 2.7L petrol applications, including 2009. These are vehicle air-filter references; confirm the vehicle year and original airbox before ordering.
