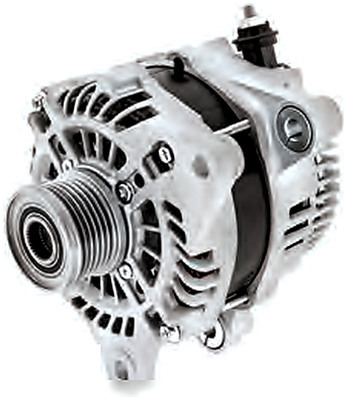

12V 150A replacement alternator for selected Mazda CX-5 and Mazda 6 models with the SH 2.2L diesel engine. Features a six-rib 51mm clutch pulley and 145mm mounting centres.

Technical Specifications

• Part number: 65-6772
• Brand: Mitsubishi
• Voltage: 12V
• Rated output: 150A
• Adjustment mounting hole(s): 1 x 10.5, 1 x M10
• Pivot mounting hole(s): 1 x 10, 1 x M10
• Adjustment-to-pivot centres: 145 mm
• Pivot span / lug length: 1 x 51, 1 x 46 mm
• Pulley diameter: 51 mm
• Pulley section: 6PV
• Weight: 8.0 kg
• Pulley operation: Clutch pulley

Part Number Cross References

Match the complete original part number and installation details before ordering.

• A002TX3081, A2TX3081

Vehicle & Equipment Applications

Match the specified vehicle, engine and build range. Where no final year is listed, confirm the particular vehicle before ordering.

• Mazda · CX-5 · KE, KF · 2.2 D · SH · Diesel · from 2012 (catalogue does not specify final year)
• Mazda · Mazda 6 · GJ, GL · 2.2 D · SH · Diesel · from 2012 (catalogue does not specify final year)
• Mazda 3 BM — 2.2L SH/SHY1 twin-turbo diesel; confirm build year, D / D / P connector and original alternator number.

Related air filters: K&N 33-3024 is a shared-vehicle reference for selected CX-5 2.2L diesel factory airboxes (including 2014). Confirm the vehicle year, engine and original airbox before ordering the filter. These are air-filter references, not alternator interchange numbers.
