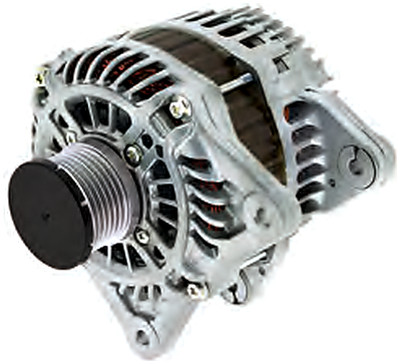

12V 120A replacement alternator for selected Nissan Dualis J10 2.0L MR20DE and Tiida C11 1.8L MR18DE petrol models. Features a six-rib 53mm pulley and 127mm mounting centres.

Technical Specifications

• Part number: 65-6690
• Brand: Jaylec
• Voltage: 12V
• Rated output: 120A
• Adjustment mounting hole(s): 1 x 8.5, 1 x M8
• Pivot mounting hole(s): 1 x 8.5, 1 x M8
• Adjustment-to-pivot centres: 127 mm
• Pivot span / lug length: 58 mm
• Pulley diameter: 53 mm
• Pulley section: 6PV
• Weight: 8.0 kg

Part Number Cross References

Match the complete original part number and installation details before ordering.

• A002TJ0281, A2TJ0281, 23100-1FC1A

Vehicle & Equipment Applications

Match the specified vehicle, engine and build range. Where no final year is listed, confirm the particular vehicle before ordering.

• Nissan · Dualis I · J10 · 2.0 · MR20DE · Petrol · 2007–2016
• Nissan · Tiida · C11 · 1.8 · MR18DE · Petrol · 2005–2013
• Nissan Qashqai 2.0L MR20DE petrol, 2007–2010, with the matching original alternator; confirm the exact vehicle variant.

Related air filters: K&N 33-2944 is listed for Qashqai 2.0L petrol, including 2009; 33-2375 is listed for Tiida 1.8L petrol, including 2009. These are different vehicle airbox applications. Check the vehicle year, engine and original airbox before ordering the filter. These are air-filter references, not alternator interchange numbers.
