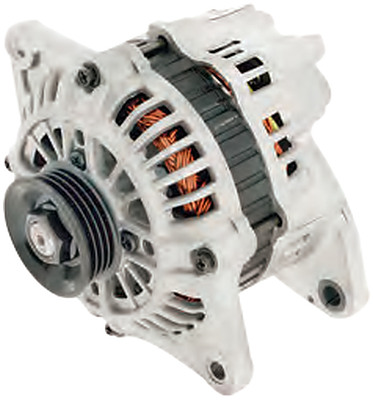

Valeo 65-6626 Alternator

12V 80A alternator for selected Mazda 323 Astina, Miata and Ford Laser applications. It uses a 59 mm four-rib pulley, an internal regulator and B+, L and S connections.

Technical Specifications

• Brand: Valeo
• Part number: 65-6626
• Voltage: 12V
• Rated output: 80A
• Adjuster-to-pivot centres: 175 mm
• Inside foot-to-foot / pivot-lug dimension: 66 mm
• Pulley diameter: 59 mm
• Pulley type: 4PV
• Regulator: Internal
• Connections: B+, L, S
• Excitation: External
• Ground: Negative

Part Number Cross References

Match the original alternator number and physical specification before ordering.

• 0K201-18-300B, 0K240-18-300, 0K241-18-300, 0K2A2-18-300, 0K9B0-18-300, 0K9B1-18-300, 0K9B3-18-300, AB170036
• AB170094, TA000A36701, AB180092, AB190110, AB190111, B6BF-18-300, BPD3-18-300, A002T39391
• A002T33892, A002T33991, A002T36177, A002T39291, A002TA3991, A002TA5891, A002T80391, A002T80891
• A002T83491, A005T00877, A2T33892, A2T33991, A2T36177, A2T80391, A2T39291, A2T80891
• A2T39391, A2T83491, A2TA3991, A2TA5891, A5T00877, 600009, 600247

Vehicle Application List

• Mazda 323 BG 1.6L B6 petrol, 1989–1994, with the matching 80A four-rib alternator.
• Mazda 323 BG 1.8L BP petrol, 1989–1994, with the matching 80A four-rib alternator.
• Mazda MX-5 / Miata NA 1.6L B6 petrol, 1990–1994; match the B+, L and S electrical connections.
• Selected Ford Laser and further Mazda 323 Astina applications with B6, BP or BPD engines; confirm the exact build and original unit number.

Applications apply to the specified engine and alternator configuration. Compare the original unit number, electrical connection and pulley before ordering.

Related air filters: K&N 33-2034 is listed for Mazda Miata / MX-5 1.6L petrol applications, including 1990–1993. Confirm the filter separately for Laser and 323 applications. Check the vehicle year, engine and original airbox before ordering the filter. These are air-filter references, not alternator interchange numbers.
