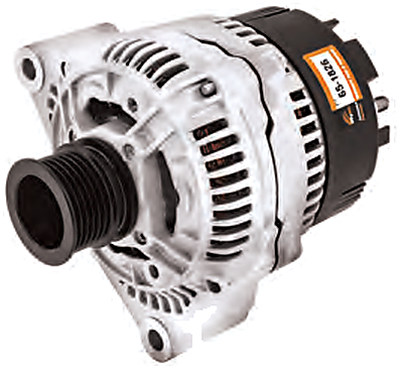

12V 90A replacement alternator for selected Mercedes-Benz C-Class and E-Class petrol models with M103, M104 or M111 engines. Features a six-rib 48mm pulley and 155mm mounting centres. Fitment note: Match the original 90A alternator, chassis and engine code. A 120A alternative requires a separate fitment check and must not be assumed interchangeable. Technical Specifications - Part number: 65-1826
- Brand: Jaylec
- Voltage: 12V
- Rated output: 90A
- Adjustment mounting hole(s): 1 x 10.5
- Pivot mounting hole(s): 1 x 10.5
- Adjustment-to-pivot centres: 155 mm
- Pivot span / lug length: 2 x 56 mm
- Pulley diameter: 48 mm
- Pulley section: 6PV
- Weight: 7.0 kg
Part Number Cross References Match the complete original part number and installation details before ordering. - 0 123 320 044, 0 123 335 002, 0 124 325 226, 9 120 369 044, 0091540202, A 009 154 02 02, A 010 154 46 02
Vehicle & Equipment Applications Match the specified vehicle, engine and build range. Where no final year is listed, confirm the particular vehicle before ordering. - Mercedes-Benz · C-Class · C 180 - 1.8 · W202 · M 111.920, M 111.921 · Petrol · 1993–2000
- Mercedes-Benz · C-Class · C 180 T - 1.8 · S202 · M 111.920, M 111.921 · Petrol · 1996–2000
- Mercedes-Benz · C-Class · C 200 - 2.0 · W202 · M 111.941, M 111.945 · Petrol · 1994–2000
- Mercedes-Benz · C-Class · C 200 T - 2.0 · S202 · M 111.941, M 111.945 · Petrol · 1996–2001
- Mercedes-Benz · C-Class · C 220 - 2.2 · W202 · M 111.961 · Petrol · 1993–2000
- Mercedes-Benz · C-Class · C 230 - 2.3 · W202 · M 111.974 · Petrol · 1996–1997
- Mercedes-Benz · C-Class · C 230 T - 2.3 · S202 · M 111.974 · Petrol · 1996–1998
- Mercedes-Benz · C-Class · C 280 - 2.8 · W202 · M 104.941 · Petrol · 1993–2000
- Mercedes-Benz · C-Class · C 36 AMG - 3.6 · W202 · M 104.941 (AMG 3.6) · Petrol · 1994–2000
- Mercedes-Benz · E-Class · E 200 - 2.0 · W124 · M 111.940 · Petrol · 1993–1995
- Mercedes-Benz · E-Class · E 200 T - 2.0 · S124 · M 111.940 · Petrol · 1993–1996
- Mercedes-Benz · E-Class · E 200 T - 2.0 · S210 · M 111.942 · Petrol · 1996–2000
- Mercedes-Benz · E-Class · E 220 T - 2.2 · S124 · M 111.960 · Petrol · 1993–1996
- Mercedes-Benz · E-Class · E 230 - 2.3 · W210 · M 111.970 · Petrol · 1995–1997
- Mercedes-Benz · E-Class · E 230 T - 2.3 · S210 · M 111.970 · Petrol · 1996–1997
- Mercedes-Benz · E-Class · E 280 - 2.8 · W124 · M 104.942 · Petrol · 1993–1995
- Mercedes-Benz · E-Class · E 280 - 2.8 · W210 · M 104.945 · Petrol · 1996–1997
- Mercedes-Benz · E-Class · E 280 T - 2.8 · S124 · M 104.942 · Petrol · 1993–1996
- Mercedes-Benz · E-Class · E 300 T 4-matic - 3.0 · S124 · M 103.985 · Petrol · 1993–1996
- Mercedes-Benz · E-Class · E 320 - 3.2 · A124 · M 104.992 · Petrol · 1993–1998
- Mercedes-Benz · E-Class · E 320 - 3.2 · A124 · M 104.992 · Petrol · 1993–1997
- Mercedes-Benz · E-Class · E 320 - 3.2 · W124 · M 104.992 · Petrol · 1993–1995
- Mercedes-Benz · E-Class · E 320 - 3.2 · W210 · M 104.995 · Petrol · 1995–1997
- Mercedes-Benz · E-Class · E 320 T - 3.2 · S124 · M 104.992 · Petrol · 1993–1996
- Mercedes-Benz · E-Class · E 36 AMG - 3.6 · A124 · M 104.992 · Petrol · 1994–1998
- Mercedes-Benz · E-Class · E 36 AMG - 3.6 · C124 · M 104.992 · Petrol · 1994–1997
- Mercedes-Benz · E-Class · E 36 T AMG - 3.6 · S124 · M 104.992 · Petrol · 1994–1996
- Mercedes-Benz SLK200 R170 — 2.0L M 111.946 petrol, 1996–2000; match the original 90A alternator.
Related air filters: K&N 33-2703 is listed for the Mercedes-Benz C180 1.8L petrol, 1993–2000. K&N 33-2747 is listed for the 1996 E280 2.8L inline-six petrol. These references apply to different vehicles and airboxes. These are air-filter references for the stated vehicles, not alternator interchange numbers. Match the original airbox and filter before ordering. |
