The Davies Craig EWP140 Alloy Electric Water Pump & LCD Digital Controller Combo Kit (Part #8980 / DC-8980) delivers ultimate thermal management for high-performance 6-cylinder, V8, turbocharged, and heavy-duty 4WD engines. Delivering a massive 147 Litres/min (38.8 GPM) of coolant flow, this lightweight alloy pump frees up parasitic engine drag—releasing up to 10kW (13hp) of extra power while dramatically improving cooling efficiency.
Why Upgrade to the EWP140 Digital Combo?
- Unmatched 147 L/min Flow Rate: Engineered to handle high-heat environments and heavily modified or forced-induction engines.
- Intelligent LCD Thermal Management: Continuously monitors coolant temperatures and modulates pump speed to maintain your ideal set target.
- Automatic Fan Control: Automatically engages your electric radiator cooling fan if engine temps rise +3°C above your target set point.
- Post-Ignition Heat-Soak Protection: Keeps the coolant circulating and fans running after hot engine shutdown to prevent heat soak damage.
- Rugged Powder-Coated Alloy Housing: Durable, lightweight aluminum body built for demanding street, motorsport, and off-road applications.
- Frees Up Engine Horsepower: Eliminates belt-driven mechanical water pump resistance, saving fuel and boosting wheel horsepower.

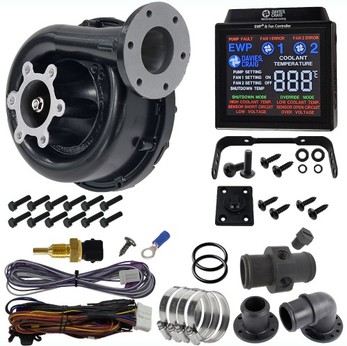

Kit Contents (Part #8980)
This complete all-in-one DIY package includes everything required for installation:
- 1x EWP140 12V Alloy Electric Water Pump Assembly (Powder-Coated Black)
- 1x LCD Digital EWP & Fan Controller with Mounting Plate & Hardware
- 1x Coolant Temperature Sensor (1/4" NPT Thread)
- 1x 38mm (1½") In-line Nylon Sensor Adapter & 1/4" NPT Bung
- 1x 38mm (1½") Straight Alloy Adapter
- 1x 38mm (1½") 90° Alloy Adapter
- 1x Complete Plug & Play Wiring Harness with Relay
- 4x Stainless Steel Hose Clamps & Rubber Adapters/O-Rings
Technical Specifications
- Part Number: 8980 / DC-8980 (DC8980)
- Operating Voltage: 12V DC (3V to 15V DC operating range)
- Maximum Current Draw: 10 Amps @ 13V
- Maximum Flow Rate: 147 L/min (38.8 US GPM) @ 13V DC
- Pump Body Material: Powder-Coated Aluminum Alloy
- Pump Weight: 1,226 grams (2.7 lbs)
- Operating Temperature Range: -40°C to 130°C (-40°F to 266°F)
- Burst Pressure: 500 kPa (72.5 PSI)
- Inlet/Outlet Port Size: 38mm (1½") — fits hose sizes 35mm to 51mm (1⅜" to 2") with included adapters
Fitting & Installation Tip
The EWP140 is a recirculating centrifugal pump designed for closed automotive cooling loops. It is not self-priming and must be mounted in an orientation that allows gravity feed from the radiator outlet. Can be fitted as a standalone primary pump or inline auxiliary booster.
