SKU: 70-2844
Brand: Jaylec
Unit of Measure: EACH

Description

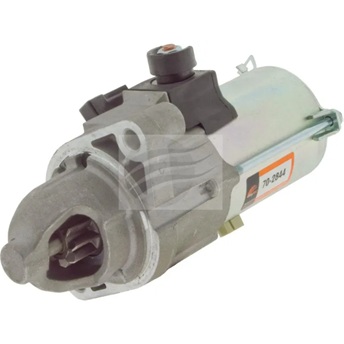

The Jaylec Starter Motor 70-2844 is a premium aftermarket replacement engineered to meet or exceed strict original equipment standards. Built with a powerful 1.6kW motor and heavy-duty internal gear-reduction components, this 12V unit provides exceptional cranking torque and fast, reliable ignition performance under all everyday driving conditions for Honda's popular 2.4L i-VTEC platforms.

Specifications:

• Voltage: 12V
• Power Rating: 1.6 kW
• Number of Teeth: 9T
• Rotation: CW (Clockwise)
• Pinion Diameter: 29 mm
• Flange Diameter: 74 mm
• Pinion at Rest: 33 mm / 35 mm (Variant Dependent)
• Mounting Holes (C-C): 116 mm
• Mounting Hole ID: 1 x 10.5 mm / 1 x 13 mm
• Overall Length: 225 mm / 245 mm
• Housing Index: Fixed

OEM Replacement / Cross Reference & Notes:

• Honda / Mitsuba OEM equivalents: SM612-09, SM61209, 31200-RAA-A51, 31200RAAA51, 31200-RAD-004
• OEX: DXA554
• Jaylec Alternatives: 70-2846, 70-2849, 70-2850 (Be sure to check terminal pin types and pinion at rest offsets on variations of the K24 block)
• Type: Permanent Magnet Gear Reduction (PMGR)

Vehicle Fitment:

Suits popular 4-cylinder Honda passenger cars and SUV models running the 2.4L i-VTEC engine, including:

• Honda Accord (Euro CL9, CM5 Series - 2006 to Onwards)
• Honda CR-V (RD7, RE Series - 2.4L variants)
• Honda Odyssey (RB Series 2.4L)
• Engine Codes: K24A, K24A3, K24A4, K24A8 (2.4L DOHC i-VTEC Petrol)

Related Upgrades & Engine Service Parts:

• K&N Premium Air Filter Cross-Fit: 33-2276 (High-flow washable panel filter matching Euro CL9 engine paths) or 33-2342 (High-flow drop-in alternative optimized for North American/Standard body layout airboxes).

Warranty & Support:

All Jaylec starter motors are backed by a comprehensive 36-month / 25,000km warranty for passenger vehicles under normal wear and correct installation guidelines.
