SKU: 70-8446-1NP
Brand: Jaylec
Unit of Measure: EACH

Description

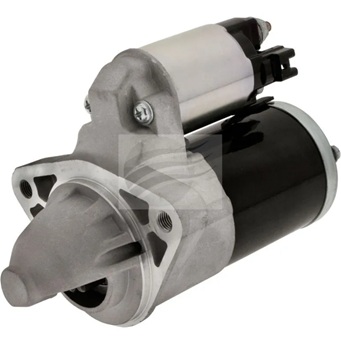

The Jaylec Starter Motor 70-8446-1NP is a high-performance aftermarket replacement engineered to match or exceed strict OEM standards. Built with heavy-duty internal components and premium insulated wiring, this 12V 1.4kW unit delivers exceptional cranking torque and reliable ignition performance under demanding conditions. This model features the updated late-style plug configuration (TG16R style) for exact plug-and-play installation.

Specifications:

• Voltage: 12V
• Power Rating: 1.4 kW
• Number of Teeth: 9T
• Rotation: CW (Clockwise)
• Pinion Diameter: 29 mm
• Flange Diameter: 74 mm
• Pinion at Rest: 19 mm
• Mounting Holes (C-C): 104 mm
• Mounting Hole ID: 2 x M10
• Overall Length: 207 mm

OEM Replacement / Cross Reference & Notes:

• Toyota OEM: 28100-75150, 28100-75151, 28100-0C010, 28100-75090, 28100-75091
• Denso Original: 228000-5022, 228000-5023, 228000-5020, 228000-5021, 428000-1250, 428000-3050, TG16R
• OEX: BXT541
• Bosch: BXTR128
• Ashdown Ingram: DXA541
• Jaylec Standard Plug Alternative: 70-8446 (Early style oval plug variant)
• Type: Planetary Gear Reduction

Vehicle Fitment:

Suits popular 4-cylinder Toyota commercial and passenger 4WD models, including:

• Toyota Hilux (RZN169, RZN174, TGN16R)
• Toyota Hiace (TRH Series: TRH201, TRH214, TRH221, TRH223, TRH224)
• Toyota Prado (95 Series, 120 Series: RZJ95, TRJ120)
• Toyota 4Runner
• Engine Codes: 2TR-FE (2.7L Petrol), 3RZ-FE (2.7L), 2RZ-FE (2.4L), 5RZ

Related Upgrades & Engine Service Parts:

• K&N Premium Air Filter Cross-Fit: 33-2276 or 33-2443 (Depending on exact body shape variant; check catalog cross-references for matching 2.7L configurations).

Warranty & Support:

All Jaylec starter motors are backed by a comprehensive 36-month / 25,000km warranty for passenger and light commercial applications under normal wear and correct installation guidelines.
