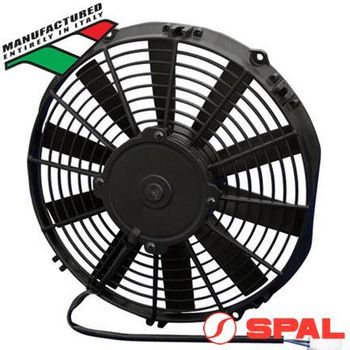

The SPAL EF3505 (VA09-AP8/C-27S) is an 11-inch, 12V high-performance pusher fan designed for applications where space behind the radiator is limited. By mounting in front of the cooling core to push air through, this unit is the perfect solution for tight engine bays or auxiliary AC condenser cooling. Physically in stock at our Kerikeri warehouse and ready for daily courier dispatch, this is the genuine Italian-made cooling solution Kiwi builders rely on—shipped from our shelves, not drop-shipped from overseas.

Part Number Cross-Reference Matrix

For seamless replacement or upgrading, the EF3505 is the correct match or high-performance alternative for the following references:

• SPAL Global Model: VA09-AP8/C-27S
• US Factory Part #: 30100365
• Alternative Trade / SKU References: EF3505 / SPAL-EF3505 / SPEF3505
• Puller Counterpart: EF3504 (If your setup requires rear-mounting to pull air through the core, use the EF3504 model)

Applications: What This Fan Is Used For

The EF3505 11" fan is selected by professional Kiwi fabricators and performance tuners for these common high-demand configurations:

• Front-Mount Configuration: Ideal for setups where engine-driven fans or bulky aftermarket radiators have left no clearance behind the core.
• AC Condenser Cooling: An excellent choice for mounting directly in front of an air-conditioning condenser to maintain cabin cooling efficiency in stop-start traffic.
• Auxiliary Cooling: Often used as a secondary fan in front of a main radiator to provide an extra "boost" of airflow during high-load track conditions.
• Durable Off-Road Performance: Like all SPAL units, it features a fully sealed motor that is protected against the dust, water, and vibration typical of 4x4 and off-road driving.

EF3505 11" SPAL Thermo Fan Specifications

• SPAL Fan Model: VA09-AP8/C-27S
• Voltage: 12V
• Airflow Configuration: Pusher (Mounts In Front of Core to Push Air)
• Blade & Shroud Type: Straight Blade / Integrated Finger Guard
• Airflow Capacity: 806 CFM (1370 M³/H)
• Current Draw: 6.8 Amps
• Blade Diameter: 11 Inch (280mm)

Physical Dimensions (Verified Millimetres)

• A (Overall Width): 294mm
• B (Overall Height): 310mm
• C (Total Depth at Motor): 155mm
• D (Mounting Hole Spacing): 269mm
• E (Motor Housing Depth): 52mm

Technical Note: Please verify your clearance using the dimensions above. Ensure your project setup accounts for the 155mm total depth (Dimension C) required for the motor housing if mounting in front of your core.
