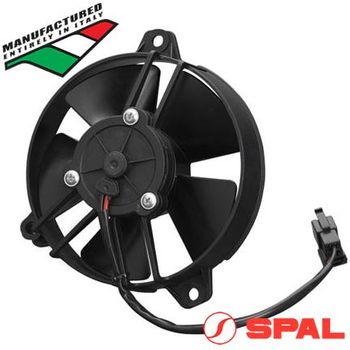

The SPAL EF3569 (VA31-A101-46S) is a premium, ultra-compact 12V 5.2-inch electric pusher fan engineered for specialized automotive, motorsport, and motorcycle cooling applications. This high-efficiency straight paddle-blade fan features an open shroud design that delivers a strong 307 CFM of airflow to push cool air directly into your radiator or cooling core. Important Mounting Note: This specialized compact fan body does not feature built-in feet slots and cannot be used with standard SPAL clip-on mounting feet. It is designed specifically for flush custom mounting, custom brackets, or universal pin configurations. Common Applications & What People Use It For Due to its tiny footprint, front-mount pusher layout, and rugged motor build, the SPAL EF3569 is widely trusted across New Zealand for targeted cooling problem-solving: - Front-Mount Auxiliary Cooling: Installed on the grille side of small radiators or heat exchangers to provide extra airflow when a rear puller fan cannot keep up or lacks physical clearance.
- Motorbike & Quad Bike Radiators: Popular among adventure bike builders and ATV riders who need an auxiliary front-mount pusher fan to stop engine temps spiking during low-speed trail work.
- Small Fluid & Transmission Coolers: Perfectly sized to mount directly onto aftermarket power steering coolers, differential coolers, or remote transmission fluid (ATF) coolers on performance track cars and tow rigs.
- Custom Go-Karts & Buggies: Extensively used in shifter karts, grass karts, and custom off-road buggies where engine bay real estate is extremely limited.
- Industrial Enclosures & Cab Ventilation: Chosen by marine and agricultural fabricators for heavy-duty electrical cabinet cooling or small driver cab air circulation due to its commercial-grade motor durability.
Part Number Cross-Reference Matrix This unit is a direct replacement, trade equivalent, or match for the following manufacturer codes and retail references: - SPAL Global SKU: VA31-A101-46S
- SPAL US / Manufacturer Part #: 30103013 (Summit Part # SPU-IX-30103013)
- Alternative Trade Reference: SPEF3569 / SPAL-EF3569
- Industry Barcode / UPC: 816211020610
Key Features & Benefits - Authentic SPAL Engineering: Genuine Italian-designed fan built for long-life industrial durability, far outlasting generic micro-fans.
- IP68 Waterproof Motor: Features a premium, individually balanced, fully sealed motor casing that completely protects internal electronics from water washdowns, mud, and road grime.
- Vibration-Free Operation: Precision factory balance eliminates motor vibration, protecting your radiator core and extending bearing longevity.
- Ultra-Low Current Footprint: Efficient 4.3-amp current draw makes it highly safe to wire into smaller vehicle electrical systems and motorcycle charging stators without overloading the circuit.
EF3569 5.2" SPAL Thermo Fan Specifications - SPAL Fan Model / Part #: VA31-A101-46S (US Part # 30103013)
- Voltage: 12V
- Airflow Configuration: Pusher (Blows Air / Mounts on Front of Core)
- Blade Diameter: 5.2 Inch (132mm)
- Blade & Shroud Type: Straight Paddle Blade / Open Shroud
- Airflow Capacity: 307 CFM (520 M³/H)
- Current Draw: 4.3 Amps

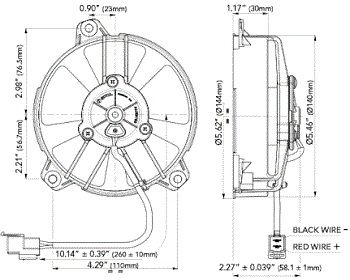

EF3569 Fitting Dimensions - Total Face Diameter (Outer Shroud Ring): 144mm / 5.51"
- Core/Blade Diameter: 132mm / 5.2"
- Total Unit Depth (Thickness): 58.1mm - 60mm / 2.36"
|
