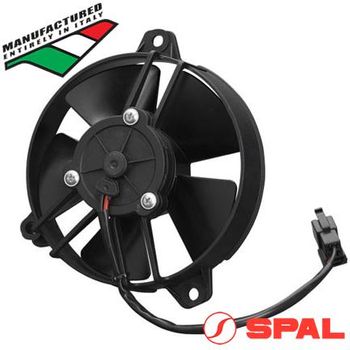

The SPAL EF3570 (VA31-A101-46A) is a premium, ultra-compact 12V 5.2-inch electric puller fan engineered for specialized automotive, motorcycle, and motorsport cooling solutions. This high-efficiency paddle-blade fan features an open shroud design that delivers a strong 342 CFM of airflow to pull heat directly away from your cooling core. Important Note: This specialized fan body does not feature built-in feet slots and cannot be used with standard SPAL clip-on mounting feet. It is designed for flush custom mounting or universal pin/bracket configurations. Common Applications & What People Use It For Due to its compact 5.2-inch diameter and high-output motor, the SPAL EF3570 is widely trusted across New Zealand for the following applications: - Racing Motorcycles & ATVs: A highly popular cooling upgrade or factory replacement for dirt bikes, enduro bikes, quad bikes, and road cruisers that run hot during low-speed trail riding or at idle.
- Auxiliary Transmission & Oil Coolers: Perfectly sized to mount directly onto aftermarket engine oil coolers, power steering coolers, or remote automatic transmission fluid (ATF) coolers on performance track cars and heavy tow vehicles.
- Karts & Micro Sprints: Extensively used in shifter karts, custom off-road buggies, and micro-light vehicles with extremely confined radiator real estate.
- Agriculture & Machinery Cabin Ventilation: Frequently utilized to provide heavy-duty electrical enclosure ventilation or compact cab air circulation in farming and industrial equipment.
- Harsh Environment Projects: Engineered with a fully sealed, IP68 waterproof motor casing to ensure reliable operation in mud, dust, and wet off-road environments.
Part Number Cross-Reference Matrix This unit is a direct replacement, trade equivalent, or match for the following manufacturer codes and retail references: - SPAL Global SKU: VA31-A101-46A
- SPAL US / Manufacturer Part #: 30103011 (Summit Part # SPU-IX-30103011)
- Alternative Part Numbers: 30103059 / VA31A10146A
- Alternative Trade Reference: SPEF3570 / SPAL-EF3570
- Industry Barcode / UPC: 816211020603
Key Features & Benefits - Authentic SPAL Engineering: Genuine Italian-designed fan built for long-life industrial durability, far outlasting generic micro-fans.
- IP68 Waterproof Motor: Premium fully sealed assembly protects internal electronics from water washdowns and road grime.
- Individually Balanced: Every fan is factory-balanced to eliminate vibration, ensure quiet operation, and extend the lifespan of the motor bearings.
- Low Current Footprint: Efficient 4.8-amp current draw makes it ideal for smaller vehicle electrical systems and motorcycle charging stators.
EF3570 5.2" SPAL Thermo Fan Specifications - SPAL Fan Model / Part #: VA31-A101-46A (US Part # 30103011)
- Voltage: 12V
- Airflow Configuration: Puller (Suction / Mounts Behind Core)
- Blade Diameter: 5.2 Inch (132mm)
- Blade & Shroud Type: Straight Paddle Blade / Open Shroud
- Airflow Capacity: 342 CFM (581 M³/H)
- Current Draw: 4.8 Amps

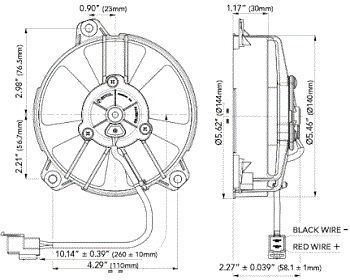

EF3570 Fitting Dimensions - Total Face Diameter (Outer Ring): 144mm / 5.51"
- Core/Blade Diameter: 132mm / 5.2"
- Total Unit Depth (Thickness): 58.1mm - 60mm / 2.36"
|
