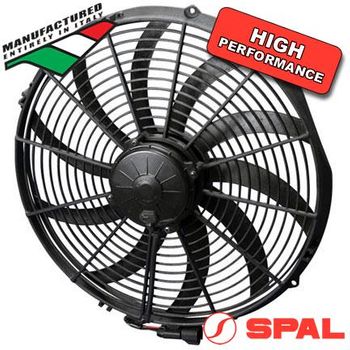

The VA18-AP70/LL/F-59A (EF3634) 12v 16" SPAL Puller Fan is designed for extreme performance!

IMPORTANT: This fan is designed for road race use. See product notes below for more information.

This Fan is to be used with an after market fan shroud. This fan can not be flush mounted onto a radiator (unless used with EF3552 Gasket). The actual fan/blade protudes past the fan cover by 3-5mm and will wear into your radiator. To flush mount you MUST USE Spal Fan Spacer EF3552


EF3634 16" HP SPAL THERMO FAN DETAILS
Spal Fan Model #     VA18-AP70/LL/F-59A
U.S. Part #     30102113
Voltage     12V
Flow Type     Puller
Blade Diam.     15 inch (381mm)
Blade Type     Skew
Shroud Type     Finger Guard
Amps     25
CFM     2256
M3/H     3800

EF3634 16" HP SPAL THERMO FAN DIMENSIONS
A     400mm / 15.75"
B     414mm / 16.3"
C     207mm / 8.15"
D     358mm / 14.09"
E     93mm / 3.66"

EF3634 is designed for use in high-performance racing applications. The EF3634 fan motor is not sealed and thus should not be used in high dust or moisture environments that could damage the motor and degrade overall performance.

This fan is designed to perform at peak levels for short periods of time and should not be used in applications that will require constant cooling for periods exceeding 60 minutes.

This fan should not be used in unusually high ambient temperatures (exceeding 80°C / 176°F)
