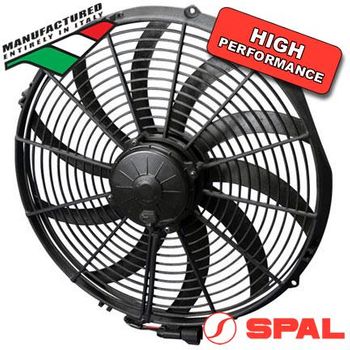

The SPAL EF3535 (VA18-AP71/LL-42S) is a heavy-duty, 16-inch 12V electric pusher fan designed for setups where space behind the radiator is non-existent. Engineered with an advanced curved-blade design, this unit delivers up to 2033 CFM of airflow while maintaining a slim profile. Physically in stock at our Kerikeri warehouse and ready for daily courier dispatch, this genuine Italian-made cooling solution is the trusted choice for high-horsepower builds and front-mount intercooler setups requiring significant air movement.

Part Number Cross-Reference Matrix

For seamless replacement or configuration swaps, the EF3535 is the industry benchmark for high-output 16-inch pusher fans. Use the reference below to ensure you have the correct airflow orientation for your build:

• SPAL Global Model: VA18-AP71/LL-42S
• US Factory Part #: 30102048
• Alternative Trade / SKU References: EF3535 / SPAL-EF3535 / SPEF3535
• Puller Counterpart: EF3534 (If your layout allows for rear-mounting to pull air through, use the EF3534 model)
• Design Note: This is a "Long Life" (LL) series fan, featuring upgraded brush systems for extended durability in the most demanding environments.

Applications: High-Performance Pusher Configurations

Because the EF3535 mounts to the front face of a cooling core to blow air inward, it is chosen by fabricators for specialized thermal solutions where space is at a premium:

• Aftermarket Air Conditioning: Maximizes airflow across auxiliary A/C condenser cores to keep cabin temperatures cold even in heavy traffic.
• Front-Mount Intercoolers (FMIC): Helps purge heat soak from intercooler cores during low-speed staging, drift events, or drag racing queues.
• High-Performance Radiators: An excellent choice for front-mounting to push air through high-density aluminum cores when rear clearance is limited by engine accessories.
• Harsh Environment Durability: Features an IP68-rated, fully sealed motor to protect against the dust, grit, and water ingress typical of off-road and rally competition.

EF3535 16" SPAL 12V Pusher Fan Specifications

• SPAL Fan Model: VA18-AP71/LL-42S
• Voltage: 12V
• Airflow Configuration: Pusher (Mounts in Front of Core to Blow Air Through)
• Blade & Shroud Type: Curved Blade / Integrated Finger Guard
• Airflow Capacity: 1959 - 2033 CFM
• Current Draw: 21.5 - 22.6 Amps (High-performance draw)
• Blade Diameter: 16 Inch (406mm)

Physical Dimensions (Verified Millimetres)

• A (Overall Width): 400mm
• B (Overall Height): 414mm
• C (Total Depth at Motor): 207mm
• D (Mounting Hole Spacing): 358mm
• E (Motor Housing Depth): 88mm

Technical Note: This is a high-amperage pusher fan (approx. 22A). Please ensure your wiring, relay, and fuse setup are rated for high-draw performance cooling. If mounting in front of the radiator, ensure your grille or bumper assembly has sufficient clearance for the 207mm total unit depth.
