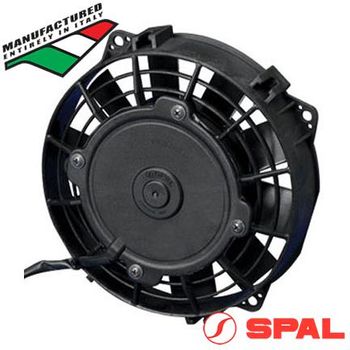

The SPAL EF3602 (VA22-AP11/C-50A) is a high-performance, ultra-slim 12V 6.5-inch electric puller fan engineered for specialized automotive, motorcycle, and motorsport cooling layout configurations. Delivering an impressive 313 CFM of airflow from a highly compact body, this straight-blade fan features an ultra-low profile depth of just 52mm to fit behind tight components. Common Applications & What People Use It For Due to its high airflow capability relative to its compact 6.5-inch footprint, the SPAL EF3602 is widely trusted across New Zealand for the following targeted installations: - Motorcycle & Adventure Bike Radiators: An excellent heavy-duty cooling upgrade or custom replacement for road cruisers, adventure touring bikes, and enduro dirt bikes navigating slow-speed, high-load terrain.
- Remote Oil & Fluid Coolers: Perfectly sized for mounting onto aftermarket engine oil coolers, power steering coolers, or remote transmission fluid (ATF) coolers on drift, track, or heavy tow vehicles.
- Intercooler Heat Exchangers: Applied directly to smaller top-mount or side-mount intercooler setups in turbocharged projects to mitigate heat soak.
- Go-Karts & Micro Sprints: A popular choice for custom shifter karts, field buggies, and dwarf racing cars with highly constrained radiator space.
- Enclosure & Machinery Ventilation: Widely used by industrial fabricators for reliable, constant-duty ventilation in heavy equipment driver cabins or sealed electrical control enclosures.
Part Number Cross-Reference Matrix This unit is a direct replacement, trade equivalent, or match for the following manufacturer codes and retail references: - SPAL Global SKU: VA22-AP11/C-50A
- SPAL US / Manufacturer Part #: 30100402 (Summit Part # SPU-IX-30100402)
- Alternative Trade Reference: SPEF3602 / SPAL-EF3602
- Industry Barcode / UPC: 816211010376
Key Features & Benefits - Authentic SPAL Reliability: Premium Italian-engineered fan built for extreme automotive environments, vastly outlasting cheaper generic alternatives.
- Fully Sealed Motor Casing: Industrial-grade dustproof and waterproof motor safeguards internal components during wet weather or dusty trail riding.
- Individually Factory Balanced: Each assembly is precision balanced to ensure smooth performance, lower noise thresholds, and significantly extended motor bearing life.
- Low Profile Footprint: A physical mounting thickness of just 52mm maximizes clearance near pulleys, chassis rails, or engine blocks.
EF3602 6.5" SPAL Thermo Fan Specifications - SPAL Fan Model / Part #: VA22-AP11/C-50A (US Part # 30100402)
- Voltage: 12V
- Airflow Configuration: Puller (Suction / Mounts Behind Core)
- Blade Diameter: 6.5 Inch (165mm)
- Blade & Shroud Type: Straight Blade / Finger Guard Shroud
- Airflow Capacity: 313 CFM (550 M³/H)
- Current Draw: 5.0 Amps

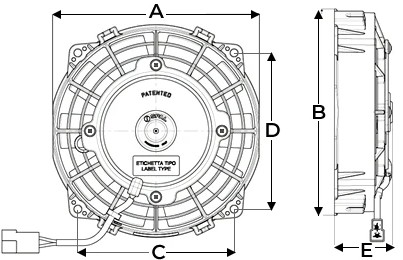

EF3602 Fitting Dimensions - A (Total Outer Diameter): 178mm / 7.0"
- B (Total Height): 184mm / 7.24"
- C (Core Diameter): 135mm / 5.31"
- D (Mounting Hole Centers): 135mm / 5.31"
- E (Unit Depth / Thickness): 52mm / 2.05"
|
