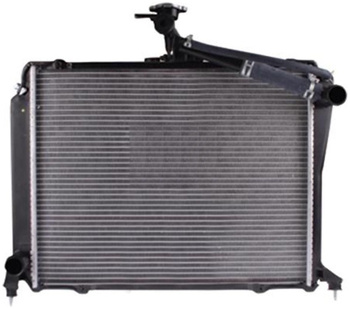

NZA517X is a replacement engine cooling radiator for selected Toyota Hiace RZH 2.4 2RZ-E Manual models. It combines an aluminium core with plastic tanks.

Selected Vehicle Applications:

• Toyota Hiace RZH 2.4L 2RZ-E petrol, manual, 01/04

Technical Specifications:

• Transmission: Manual
• Core Construction: Aluminium with plastic end tanks
• Core Dimensions: 405x500x38mm
• Hose Outlets: 37mm inlet, 37mm outlet
• Header Plates: 420 × 70 mm top and bottom

Note: Core measurements describe the cooling matrix only, excluding tanks and mounting brackets.

Cross-Reference Part Numbers:

• OEM: 16400-75070, 16400-75071
• Jayrad: JR517J
• Koyorad: PL010320
• Repco: RAD517X

Fitment Note:

Please confirm mounting positions, hose connections, transmission cooler fittings, and physical dimensions against your existing factory radiator prior to installation.

Always use the vehicle manufacturer’s specified coolant type and bleeding procedure when fitting. Inspect hoses, cap, and cooling fans as part of installation.

Warranty Details

Duration: 2 years or 50,000 kilometres (whichever happens first).
