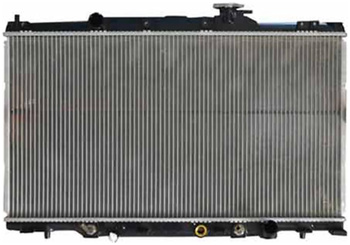

NZA505X is a replacement engine cooling radiator for selected Honda CR-V RD 2.4 K24A1 Auto models. It combines an aluminium core with plastic tanks.

Selected Vehicle Applications:

• Honda CR-V RD 2.4L K24A1 petrol, automatic, 01/06

Technical Specifications:

• Transmission: Automatic
• Core Construction: Aluminium with plastic end tanks
• Core Dimensions: 736x400x16mm
• Hose Outlets: 32mm inlet, 32mm outlet
• Oil Cooler Size: 325 mm

Note: Core measurements describe the cooling matrix only, excluding tanks and mounting brackets.

Cross-Reference Part Numbers:

• OEM: 19010-PNB-003, 19010-PNB-901
• Jayrad: JR505J
• Koyorad: PL081490
• Repco: RAD505X

Fitment Note:

Please confirm mounting positions, hose connections, transmission cooler fittings, and physical dimensions against your existing factory radiator prior to installation. Compare the temperature-sensor port, connector position and wiring reach with the original radiator.

Always use the vehicle manufacturer’s specified coolant type and bleeding procedure when fitting. Inspect hoses, cap, and cooling fans as part of installation.

Warranty Details

Duration: 2 years or 50,000 kilometres (whichever happens first).
