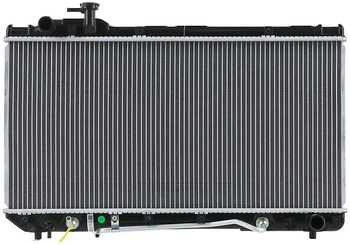

NZA433X is a replacement engine cooling radiator for selected Toyota RAV4 SXA10/SXA11 3S-FE Auto 1994–2000 models. It combines an aluminium core with plastic tanks.

Selected Vehicle Applications:

• Toyota RAV4 SXA10/SXA11 (A1) 2.0L 3S-FE petrol, automatic, 94/00

Technical Specifications:

• Transmission: Automatic
• Core Construction: Aluminium with plastic end tanks
• Core Dimensions: 708x350x24mm
• Inlet Connection: 33 mm
• Oil Cooler Length: 400 mm

Note: Core measurements describe the cooling matrix only, excluding tanks and mounting brackets.

Cross-Reference Part Numbers:

• OEM: 16400-7A120, 16400-7A121
• Jayrad: JR433J
• Adrad: TOY053
• Koyorad: PL010640
• Repco: RAD433X

Fitment Note:

Please confirm mounting positions, hose connections, transmission cooler fittings, and physical dimensions against your existing factory radiator prior to installation. Compare the upper mounts: SXA-series RAV4 radiators include saddle-mount and pin-mount designs.

Always use the vehicle manufacturer’s specified coolant type and bleeding procedure when fitting. Inspect hoses, cap, and cooling fans as part of installation.

Warranty Details

Duration: 2 years or 50,000 kilometres (whichever happens first).
