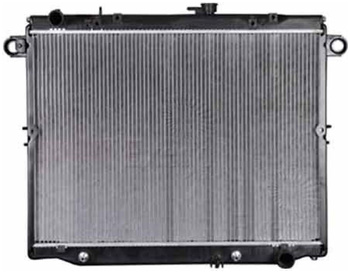

NZA1706X is a replacement engine cooling radiator for selected Toyota Land Cruiser HDJ100 1HD-FTE Auto models. It combines an aluminium core with plastic tanks.

Selected Vehicle Applications:

• Toyota Land Cruiser 100 Series 4.2L 1HD-FTE turbo diesel, automatic, 00/07
• Toyota Land Cruiser 100 Series 4.2L 1HD-FTE turbo diesel import, automatic, 00/02

Technical Specifications:

• NZA Part Number: NZA1706X
• Transmission: Automatic
• Core Construction: Aluminium with plastic end tanks
• Core Dimensions: 698x510x48mm
• Hose Outlets: 38mm inlet, 42mm outlet
• Header Plates: 720 × 68 mm top and bottom
• Oil Cooler Size: 375 mm

Note: Core measurements describe the cooling matrix only, excluding tanks and mounting brackets.

Cross-Reference Part Numbers:

• OEM: 16400-17270, 16400-17280
• Jayrad: JR1706J
• Adrad: TOY112
• Koyorad: PL011580
• Repco: RAD1706X

Fitment Note:

Please confirm mounting positions, hose connections, transmission cooler fittings, and physical dimensions against your existing factory radiator prior to installation. Compare the direction of the small bleed pipe with the original radiator.

Always use the vehicle manufacturer’s specified coolant type and bleeding procedure when fitting. Inspect hoses, cap, and cooling fans as part of installation.

Warranty Details

Duration: 2 years or 50,000 kilometres (whichever happens first).
