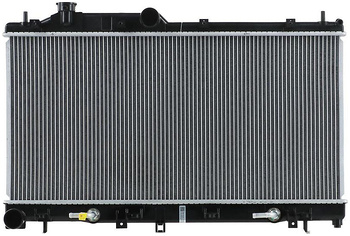

NZA1702X is a replacement engine cooling radiator for selected Subaru Outback Auto (695 mm Core) models. It combines an aluminium core with plastic tanks.

Selected Vehicle Applications:

• Subaru Outback, automatic (695 mm core)

Technical Specifications:

• NZA Part Number: NZA1702X
• Transmission: Automatic
• Core Construction: Aluminium with plastic end tanks
• Core Dimensions: 695x340x16mm
• Oil Cooler Size: 375 mm

Note: Core measurements describe the cooling matrix only, excluding tanks and mounting brackets.

Cross-Reference Part Numbers:

• OEM: 45111AG000, 45119AG000
• Jayrad: JR1702J
• Adrad: SUB017
• Koyorad: PL091680
• Repco: RAD1702X

Fitment Note:

Please confirm mounting positions, hose connections, transmission cooler fittings, and physical dimensions against your existing factory radiator prior to installation. Compare the front air-conditioning mounts, radiator cap and bleed-pipe arrangement with the original radiator.

Always use the vehicle manufacturer’s specified coolant type and bleeding procedure when fitting. Inspect hoses, cap, and cooling fans as part of installation.

Warranty Details

Duration: 2 years or 50,000 kilometres (whichever happens first).
