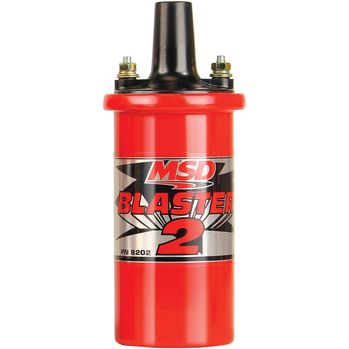

MSD High Performance Ignition Coil, Blaster 2 Series, (8202)


MSD High Performance Ignition Coil, Blaster 2 Series, (8202)

In stock

Price:  NZD $129.94 (inclds GST)

Quantity in stock 2 item(s) available.

Generally Overnight Delivery with Courier Post




If you are looking to upgrade your stock coil, or want to compliment the performance of your MSD Blaster Ignition, MSD 5, 6 or 7, the Blaster Coil line is the right choice. Our Blaster Coils are designed for improved spark output! Special 100:1 windings are used to provide maximum build-up of voltage! These windings are held secure and kept cool in an oil filled metal canister.


Features:
Improved output coil for electronic ignitions, Blaster Ignition or MSD 5, 6, and 7 Series (ballast resistor required for points)
Alkyd tower with high dielectric properties is less prone to carbon tracking
100:1 turns ratio and lower primary resistance produce high voltage output
Metal canister is filled with a premium grade oil for cooling
CARB E.O. Approved


Specifications:
Inductance    8 mH
Maximum Voltage    45,000 Volts
Peak Current    140 mA
Primary Resistance    .7 OHMs
Product Type    Coil
Secondary Resistance    4.5K OHMs
Spark duration    350 uS
Turns Ratio    100:1
Part Number    8202
