MSD Digital 6AL Ignition Control With Adjustable Built In Rev Limiter, (6425)


MSD Digital 6AL Ignition Control With Adjustable Built In Rev Limiter, (6425)

In stock

Price:  NZD $691.67 (inclds GST)

Quantity in stock 1 item(s) available.

Generally Overnight Delivery with Courier Post




The MSD 6AL Ignition Control set the standards that other ignitions strive to reach. In fact, you'll find ignitions from other companies that carry the 6AL name (and in some cases, the same part number). MSD raised the bar even higher with the revised Digital 6AL Ignition Control!

The wiring of the Digital 6AL is routed out one end of the unit through a sealed and locking connector. This eases installation and keeps your wiring looking neat and clean. The rev-limiter of the 6AL is located right on top of the housing for easy access to the two rotary dials to set the limit in 100 rpm increments.

Inside the Digital 6AL, you'll find a microprocessor that monitors and controls every firing and rev limit. The circuits are updated with efficient components that help the ignition produce more power while drawing less current! In fact, the Digital 6AL delivers over 530 volts to the coil with up to 135mJ of spark energy for every firing! Increased output combined with MSD's proven
multiple spark series is a win-win situation!

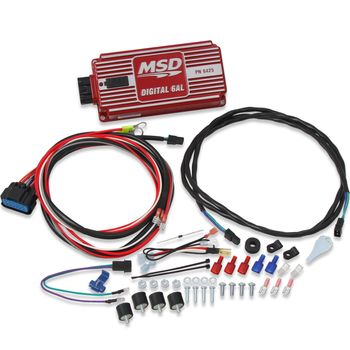

The Digital 6AL is supplied with the wiring harness and the components you'll need for installation. The 6AL is also supplied with vibration mounts. Both ignitions are compatible on 4, 6, or 8-cylinder engines with 12-volt, negative ground electrical systems. They'll accept trigger inputs from breaker points, amplifiers, and magnetic pickups.


Features:
High output with 530 volts and 135mJ of spark energy
Efficient components use less current to produce more power
Set an rpm limit with two rotary dials in 100 rpm increments
Built-in LED for system checks
All wires exit through a locked, sealed connector
Compatible with 4, 6 or 8-cylinder engines


Specifications:
Color    Red
Current Draw    1.1 Amp per 1,000 RPM
Emission Code    1
Features    Rev Limiter
Primary Voltage    520-540 Volts
Product Type    Digital 6AL Ignition Control Box
RPM Range    11,000 RPM
Secondary Voltage    45,000 Volts
Spark Energy    135-145 mJ per spark
Voltage Required    12-15 Volts, 7 Volt Start
Weight and Size    1.7 lbs., 8"L x 4"W x 1.825"H
Part Number    6425
