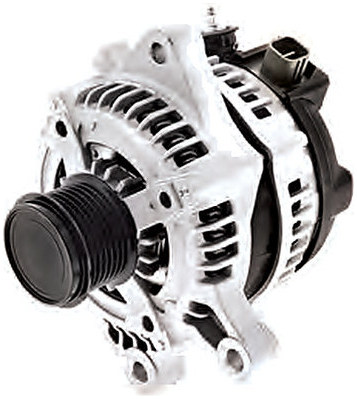

12V 130A replacement alternator for selected Toyota Hiace TRH models with the 2.7L 2TR-FE petrol engine. This RLO regulator version has a 55mm seven-rib pulley and 166mm mounting centres.

Technical Specifications

• Brand: Jaylec
• Part number: 65-8590-1
• Voltage: 12V
• Output: 130A
• Adjustment hole: 1 x 10.5 mm
• Pivot hole: 2 x 11, 1 x M10
• Adjustment-to-pivot centres: 166 mm
• Inside foot-to-foot / pivot lug length: 44 mm
• Pulley diameter: 55 mm
• Pulley type: 7PV
• Weight: 8.0 kg
• Charging control: RLO type
• Regulator / control: RLO Type

Part Number Cross References

• 104210-4600
• 104210-4601
• 104210-4602
• 104210-4603
• 27060-75370
• 27060-75371

Vehicle & Equipment Applications

• Toyota Hiace TRH — 2.7L 2TR-FE petrol, RLO configuration, from 2009; later builds require original number verification.

Related air filters: K&N 33-3143 is listed for selected HiAce 2.7L petrol applications, including 2015. Check the airbox separately; this does not establish alternator compatibility for every later HiAce. These are vehicle air-filter references; confirm the vehicle year and original airbox before ordering.
