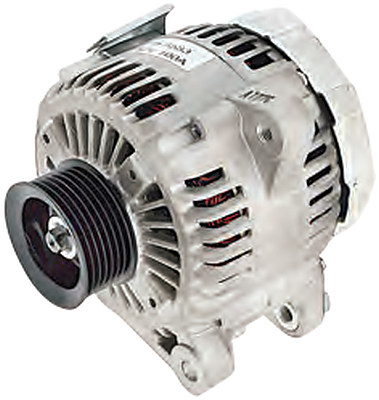

Jaylec 65-8583 Alternator

12V 100A Jaylec alternator for selected Toyota RAV4 and Avensis Verso applications. It uses a 64mm seven-rib pulley, an internal regulator and 123mm adjuster-to-pivot centres.

Technical Specifications

• Brand: Jaylec
• Part number: 65-8583
• Voltage: 12V
• Rated output: 100A
• Adjuster hole: 1 x M8
• Pivot holes: 1 x 11 mm; 1 x M10
• Adjuster-to-pivot centres: 123 mm
• Inside foot-to-foot / pivot-lug dimension: 46 mm
• Pulley diameter: 64 mm
• Pulley type: 7PV
• Regulator: Internal
• Regulator connection: 3-pin

Part Number Cross References

Match the original alternator number and physical specification before ordering.

• BXD1224N, 101211-7400, 101211-7410, 102211-0770, 102211-0780, 102211-2120
• 102211-9470, 27060-28060, 27060-28080, 27060-28090, 27060-28100, 27060-28110

Vehicle Application List

• Toyota RAV4 ACA20/ACA21 4WD, 2.0L 1AZ-FE petrol, 2000–2003
• Toyota Avensis Verso 2.0L, ACM20R, 2001–2003
• Toyota Avensis Verso 2.4L, ACM21, 2003–2007

Compare the original unit number, mounting, pulley and electrical connection before ordering.
