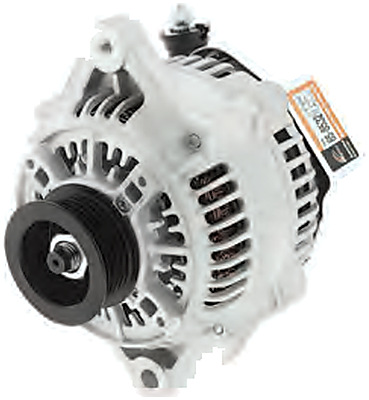

12V 100A replacement alternator for selected Toyota Prado RZJ120R models with the 3RZ-FE 2.7L petrol engine. Features a five-rib 54mm pulley and 164mm mounting centres.

Technical Specifications

• Part number: 65-8532
• Brand: Jaylec
• Voltage: 12V
• Rated output: 100A
• Adjustment mounting hole(s): 1 x M8
• Pivot mounting hole(s): 1 x 10.5
• Adjustment-to-pivot centres: 164 mm
• Pivot span / lug length: 58 mm
• Pulley diameter: 54 mm
• Pulley section: 5PV
• Weight: 7.0 kg
• Regulator connection: 4-pin

Part Number Cross References

Match the complete original part number and installation details before ordering.

• 104210-8030, 104210-8031, 104210-8032, 104210-8033, 9764210-803, 27060-75280, TG104210-8030, TG104210-8031
• TG104210-8032, TG104210-8033

Vehicle & Equipment Applications

Match the specified vehicle, engine and build range. Where no final year is listed, confirm the particular vehicle before ordering.

• Toyota Land Cruiser Prado RZJ120R, 2.7L 3RZ-FE petrol, 2002–2004; four-pin regulator connection.

Related air filters: K&N 33-2144 is listed for selected Land Cruiser Prado 2.7L petrol applications, including 2003. These are vehicle air-filter references; confirm the vehicle year and original airbox before ordering.
