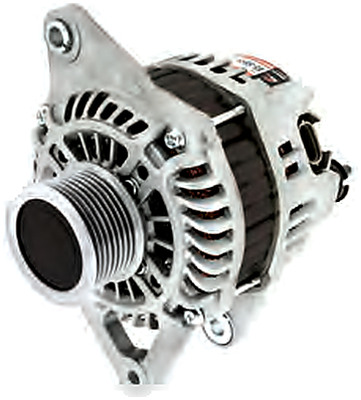

Jaylec Alternator 12V 100A for Mazda 3, Mazda 6 & CX-7 2.2L Diesel (65-6699)


Jaylec Alternator 12V 100A for Mazda 3, Mazda 6 & CX-7 2.2L Diesel (65-6699) - NZ Air Filter

In stock

Price:  NZD $507.86 (inclds GST)

Quantity in stock 1 item(s) available.

Generally Overnight Delivery with Courier Post




12V 100A replacement alternator for selected Mazda 3, Mazda 6 and CX-7 models with a 2.2L MZR diesel engine. Features ECU-controlled regulation and a 60mm eight-rib pulley.

Installation & Selection Note: Match the diesel engine and ECU-controlled regulator connection. Compare the original R2AA-18-300 or A2TJ0681-series reference and eight-rib drive before ordering.

Technical Specifications

  • Brand: Jaylec
  • Part number: 65-6699
  • System voltage: 12V
  • Rated output: 100A
  • Adjustment fixing: 1 × 10.5mm
  • Pivot fixing: 1 × M10, 1 × 10.5mm
  • Adjustment-to-pivot centres: 188mm
  • Inside-foot / pivot-lug measurement: 57mm
  • Pulley diameter: 60mm
  • Pulley profile: 8PV
  • Regulator control: ECU-controlled

Part Number Cross-References

Cross-reference part numbers:

  • R2AA-18-300, A002TJ0681A, A2TJ0681

Vehicle & Equipment Applications

  • Mazda 3 BL 2.2L MZR-CD R2 diesel, 2009–2014.
  • Mazda 6 GH 2.2L MZR-CD R2 diesel, 2008–2012.
  • Mazda CX-7 ER 2.2L MZR-CD R2/R2AA turbo diesel, 2009–2012, with the matching ECU-controlled original alternator.

Related air filters: K&N 33-2293 is listed for Mazda 3 2.2L diesel applications including 2009–2012; 33-2278 is listed for Mazda 6 2.2L diesel applications including 2010. The filter depends on the vehicle, not just the alternator number. Confirm the vehicle year, engine and original airbox before ordering the filter. These are air-filter references, not alternator interchange numbers.
