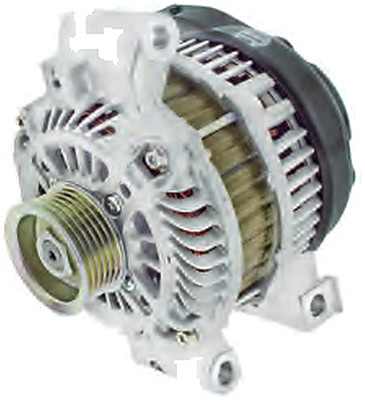

Jaylec Alternator 12V 100A for Mazda 6 & MX-5 NC Petrol (65-6666)


Jaylec Alternator 12V 100A for Mazda 6 & MX-5 NC Petrol (65-6666) - NZ Air Filter

In stock

Price:  NZD $450.36 (inclds GST)

Quantity in stock 1 item(s) available.

Generally Overnight Delivery with Courier Post




12V 100A replacement alternator for selected Mazda 6 GG/GY 2.3L L3, Mazda 6 GH 2.5L L5 and Mazda MX-5 NC 2.0L LF petrol models. Features a 50mm six-rib pulley and 175mm mounting centres.

Selection & Installation Note: Match the six-rib pulley and the exact engine/vehicle combination. Mazda 6 and MX-5 model names span different charging systems, so retain the original-number check.

Technical Specifications

  • Brand: Jaylec
  • Part number: 65-6666
  • Voltage: 12V
  • Output: 100A
  • Adjustment hole: 1 x 10 mm
  • Pivot hole: 2 x 12 mm
  • Adjustment-to-pivot centres: 1 x 175 mm
  • Inside foot-to-foot / pivot lug length: 60 mm
  • Pulley diameter: 50 mm
  • Pulley type: 6PV
  • Weight: 7.0 kg
  • Regulator / control: Internal Reg

Part Number Cross References

  • L3P9-18-300A
  • L3P9-18-300B
  • L3P9-18-300C
  • L548-18-300A
  • L548-18-300B
  • A002TJ0391CZ9
  • A002TJ0991
  • A2TJ0391

Vehicle & Equipment Applications

  • Mazda 6 GG, GY 2.3 — L3, Petrol, 2002–2007.
  • Mazda 6 GH 2.5 MZR — L5, Petrol, 2008–2012.
  • Mazda MX-5 NC 2.0 — LF, Petrol, 2005–2014.

Related air filters: K&N 33-2278 is listed for Mazda 6 2.3L petrol, including 2005; 33-2335 is listed for Mazda MX-5 NC 2.0L petrol, including 2008. These filters serve different vehicle airboxes. Check the vehicle year, engine and original airbox before ordering the filter. These are air-filter references, not alternator interchange numbers.
