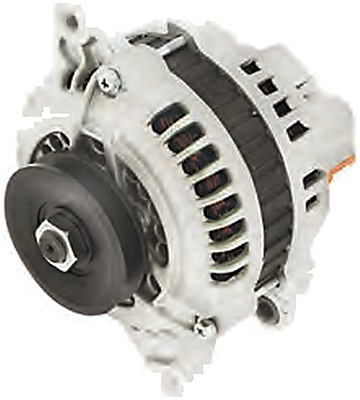

12V 75A replacement alternator for selected Mitsubishi Triton models using 4G54 or 4G64 engines and a V-belt drive. Features a 64mm single A-section pulley and 175mm mounting centres.

Technical Specifications

• Brand: Jaylec
• Part number: 65-6294-1
• Voltage: 12V
• Amperage: 75A
• Adjustment hole: 1 x M8
• Pivot hole: 2 x 8 mm
• Adjustment-to-pivot distance: 175 mm
• Inside feet / pivot lug dimension: 54 mm
• Pulley diameter: 64 mm
• Pulley section: 1A
• Unit weight: 5.5 kg

Part Number Cross References

Match the original alternator number together with the mounting, pulley and electrical connector.

• BXM1359R, BXM1367R, A002T02471, A002T03972, A002T06871, A002T49972
• A2T02471, A2T03471, A2T03472, A2T03892, A2T03972, A2T06871
• A2T49972, MD108305, MD108509, MD109166

Vehicle and Equipment Applications

• Mitsubishi Triton with 2.6L 4G54 or 2.4L 4G64 petrol engine and the matching single A-section V-belt alternator; confirm chassis, build date and original unit number.
• Mitsubishi Pajero I NA, NB, NC, ND, NE, NF and NG, 2.6L 4G54 petrol 4WD, 1983–1990; match the single V-belt pulley and mounting configuration.
