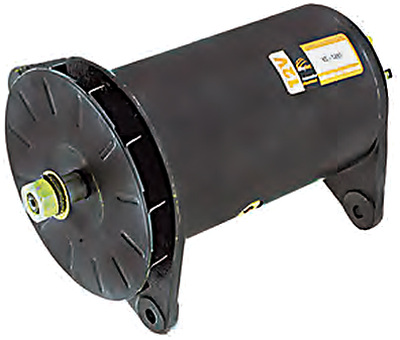

12V 22A replacement generator in the vented Lucas C40 tacho-drive configuration. This externally regulated unit has a 15mm shaft and is a generator replacement, not an internally regulated alternator conversion.

Technical Specifications

• Brand: Jaylec
• Part number: 65-5221
• Voltage: 12V
• Output: 22A
• Adjustment hole: 1 x 3/8" UNC
• Pivot hole: 2 x 8 mm
• Adjustment-to-pivot centres: 143 mm
• Inside foot-to-foot / pivot lug length: 144 mm
• Weight: 7.0 kg
• Shaft diameter: 15 mm
• Regulator / control: External

Vehicle & Equipment Applications

• Vented Lucas C40-pattern tacho-drive generator installations; no vehicle-wide fitment claimed.
