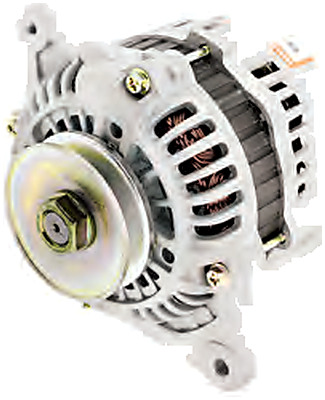

12V 65A replacement alternator for selected Ford Courier models with the G6 2.6L petrol engine. Features a single A-section 74mm pulley and 175mm mounting centres.

Technical Specifications

• Part number: 65-6632
• Brand: Jaylec
• Voltage: 12V
• Rated output: 65A
• Adjustment mounting hole(s): 1 x M8
• Pivot mounting hole(s): 2 x 10.5
• Adjustment-to-pivot centres: 175 mm
• Pivot span / lug length: 67 mm
• Pulley diameter: 74 mm
• Pulley section: 1A
• Weight: 5.5 kg

Part Number Cross References

Match the complete original part number and installation details before ordering.

• BXM1377R, F81E-18-300, FEJL-18-300, G615-18-300A, A002T02677, A002T16071A, A002T6071A, A005T00777
• A005T02377, A005T02677, A005T03477, A005TA3177, A2T02677, A2T16071A, A2T6071A, A2T-6071A
• A5T00777, A5T02377, A5T02577, A5T02677, A5T03477, A5TA3177, MD003517

Vehicle & Equipment Applications

Match the specified vehicle, engine and build range. Where no final year is listed, confirm the particular vehicle before ordering.

• Ford Courier PC, PD, PE, PG and PH 2.6L G6 petrol, 1991–2006; match the original 65A single-V-belt arrangement.
• Ford Courier PC 2.2L F2 petrol, 1988–1993; compare the original alternator number, pulley and electrical connector.
• Selected Mazda Bravo 2.6L G6 petrol applications with the matching alternator; confirm chassis and build date.
