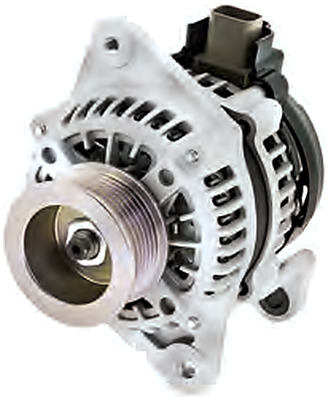

Jaylec Alternator 12V 90A for Holden Colorado RC, Rodeo RA & Isuzu D-Max 3.0L Diesel (65-3122-1ND)


Jaylec Alternator 12V 90A for Holden Colorado RC, Rodeo RA & Isuzu D-Max 3.0L Diesel (65-3122-1ND) - NZ Air Filter

In stock

Price:  NZD $363.13 (inclds GST)

Quantity in stock 1 item(s) available.

Generally Overnight Delivery with Courier Post




Recent View

12V 90A replacement alternator for selected Holden Colorado RC, Rodeo RA and Isuzu D-Max models with the 3.0L 4JJ1-TC diesel engine. Features a 62mm seven-rib pulley and 161mm mounting centres.

Installation & Selection Note: Match the original 104210-series or Isuzu alternator number and check the seven-rib pulley. The 4JJ1 engine code and regulator connection must agree with the unit removed; do not assume every diesel Rodeo or Colorado uses this version.

Technical Specifications

  • Brand: Jaylec
  • Part number: 65-3122-1ND
  • System voltage: 12V
  • Rated output: 90A
  • Adjustment fixing: 1 × M8
  • Pivot fixing: 2 × 10.5mm
  • Adjustment-to-pivot centres: 161mm
  • Inside-foot / pivot-lug measurement: 80mm
  • Pulley diameter: 62mm
  • Pulley profile: 7PV

Part Number Cross-References

Cross-reference part numbers:

  • 104210-9030, 104210-9031, 104210-9840, 104210-9841, 8-98196-585-0, 8-98229-071-0, TG104210-9031, TG104210-9033
  • TG104210-9840, TG104210-9841

Vehicle & Equipment Applications

  • Holden Colorado RC 3.0L 4JJ1-TC turbo diesel, 2008–2012.
  • Holden Rodeo RA 3.0L 4JJ1-TC diesel, 2007–2008.
  • Isuzu D-Max TFR/TFS 3.0L 4JJ1-TC diesel, 2008–May 2012.

Related air filters: K&N 33-2013 is listed for the 2009 Holden Colorado 3.0L diesel application. Confirm the airbox independently for Rodeo and D-Max variants.
