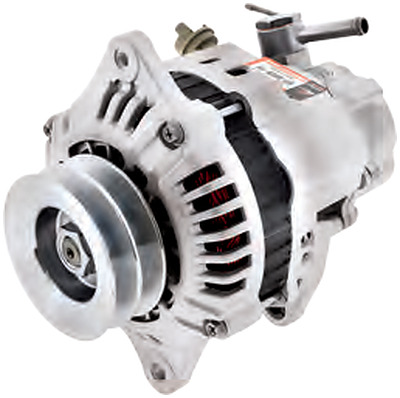

Jaylec 65-3028-1V Alternator

Jaylec 12V 100A alternator with a 60 cc pump for selected Nissan Patrol and Navara diesel applications. This version uses a 94 mm twin-groove pulley and 175 mm adjuster-to-pivot centres.

Technical Specifications

• Brand: Jaylec
• Part number: 65-3028-1V
• Voltage: 12V
• Rated output: 100A
• Adjuster hole: 1 x M8
• Pivot holes: 1 x 10, 1 x 10.5
• Adjuster-to-pivot centres: 175 mm
• Inside foot-to-foot / pivot-lug dimension: 80 mm
• Pulley diameter: 94 mm
• Pulley type: 2A
• Pump capacity: 60 cc

Part Number Cross References

Match the original alternator number and physical specification before ordering.

• 23100-06N00, 23100-G5702, 23100-G5704, 23100-G5700, 23100-G5701

Vehicle Application List

• Nissan Navara D21 2.5L SD25 diesel, 1985–1988, with the matching 100A alternator and pump arrangement.
• Nissan Patrol GQ/Y60 4.2L TD42 diesel, 1988–1999, with the matching 100A alternator and pump arrangement.
• Selected Nissan Navara/Patrol installations using the TD27 diesel engine; confirm the original alternator reference, pump and mounting before ordering.

Applications apply to the specified engine and alternator configuration. Compare the original unit number, electrical connection and pulley before ordering.

Related air filters: K&N E-9201 is listed for the 1995 Nissan Patrol 4.2L diesel application. Match the original airbox and filter dimensions; it is a separate engine air-filter reference.
