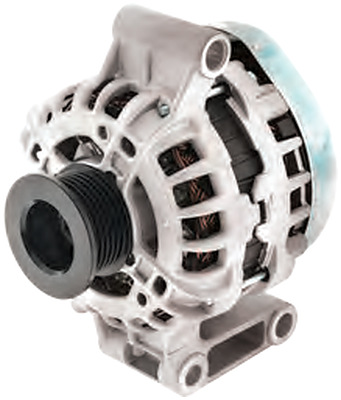

Jaylec 65-1053-3 Alternator

Jaylec 65-1053-3 is a 12V 110A alternator for selected Ford Ranger PX and Mazda BT-50 models with the 2.5L petrol engine. It uses a LIN connection and a 58mm seven-rib pulley.

Technical Specifications

• Brand: Jaylec
• Part number: 65-1053-3
• System voltage: 12V
• Rated output: 110A
• Adjustment hole: 1 x 12 mm
• Pivot hole: 1 x 11.5, 1 x 14 mm
• Adjustment-to-pivot distance: 175 mm
• Inside foot-to-foot / pivot-lug dimension: 60 mm
• Pulley diameter: 58 mm
• Pulley type: 7PV
• Connector: LIN
• Heatshield: Fitted

Part Number Cross References

Match the original number together with the electrical and physical specification.

• F000BL0606, AB39-10300-BA, AB39-10300-BE, AB39-10300-BF, L566-18300-A, L566-18300-C

Vehicle and Equipment Applications

• Ford Ranger PX 2.5L DPAT petrol, 2011–2015
• Mazda BT-50 2.5L petrol; match original alternator and connector

Application names identify selected configurations. Compare the original unit and connections before ordering.

Related air filters: K&N E-0662 is listed for the 2012 Ford Ranger 2.5L petrol application. These are air-filter references for the stated vehicles, not alternator interchange numbers. Match the original airbox and filter before ordering.
