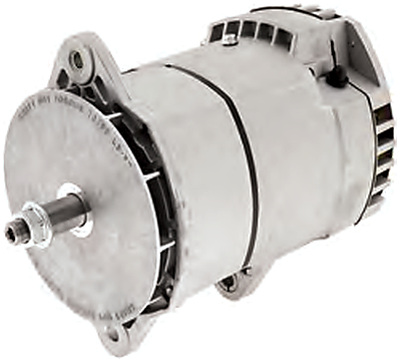

24V 75A brushless alternator for Delco 25SI installations in trucks, agricultural and mining equipment. Features J180 mounting, a 22mm shaft and a 102mm pivot span. Fitment note: Match the original alternator number and J180 mounting dimensions. Confirm the required pulley and 22mm shaft arrangement before installation. Technical Specifications - Part number: 65-0026
- Brand: Jaylec
- Voltage: 24V
- Rated output: 75A
- Adjustment mounting hole(s): 1 x 1/2" UNC
- Pivot mounting hole(s): 2 x 13
- Adjustment-to-pivot centres: 198 mm
- Pivot span / lug length: 102 mm
- Weight: 14.0 kg
- Construction: Brushless
- Mount configuration: J180
- Shaft diameter: 22 mm
Part Number Cross References Match the complete original part number and installation details before ordering. - 0R3615, 0R5206, 3E7577, 3E7578, 3T1888, OR3615, OR5206, 1117224
- 1117230, 1117281, 1117282, 10459006, 10459061, 10459062, 10459064, 10459072
- 10459102, 10459137, 10459148, 10461237, 1117226, 1117229, 1117236, 1117238
- 1117239, 1117243, 1117248, 1117253, 19010000, 19010001, 19010002, 19010006
- 19010008, 19010020, 19010022
Vehicle & Equipment Applications - Truck, agricultural and mining installations using the matching 24V 75A internally regulated Delco 25SI/26SI-type brushless alternator arrangement, J180 mounting and 22mm shaft. Match the original unit number and pulley configuration.
|
