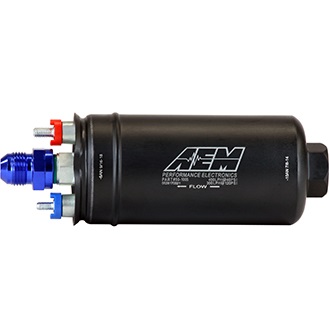

AEM E85 Compatible Inline High Flow Fuel Pump, 400LPH, -10AN Inlet, -6AN Outlet, 50-1005



AEM E85 Compatible Inline High Flow Fuel Pump, 400LPH, -10AN Inlet, -6AN Outlet, 50-1005

In stock

Price:  NZD $258.63 (inclds GST)

Quantity in stock More than 5 item(s).





AEM’s 400LPH High Flow, High-Pressure Fuel Pump is capable of supporting over 1,200 HP normally aspirated and a whopping 860 HP at 30 psi boost!* It flows 400LPH (100 gph) at 40 PSI, 340LPH (90 gph) at 73 PSI, and 270LPH (71 gph) at 120 PSI. Complete flow curves from 35 to 120 PSI and current draw vs. fuel pressure charts are available in the Specs tab.


TECHNICAL SPECS:
Weight: 35.8oz (1015 grams)
Outside Diameter: 60mm OD
External Materials: Black plated steel with laser etching, with zamac discharge end cap
Inlet Fitting: -10AN 7/8"-14 Female
Outlet Fitting: -6AN 9/16"-18 Female
PRV Activation: 150 PSI
Impeller Design: Roller vane with ceramic end plate


VOLTAGE SPECS:
Connector Terminal: 6mm stud positive, 5mm stud negative
Min Voltage Input: 10 volts
Max Voltage Input: 18 volts
Current Draw (40 psi): 9.73 amps no check valve, 10.68 amps with check valve (13.5v)
Current Draw (120 psi): 16.07 amps no check valve, 17.13 amps with check valve (13.5v)
Fuse: 25 amps (13.5v)

* Power rating given at 43 PSI, 13.5v at the pump terminal with a BSFC of .5. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities

*Power rating given using gasoline and assuming a base fuel pressure of 43 PSI, 13.5v at the pump, 6.2 lbs/gal with a BSFC of 0.65. Boost fuel pressure is assumed to be the base pressure of 43 PSI + boost pressure. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities
