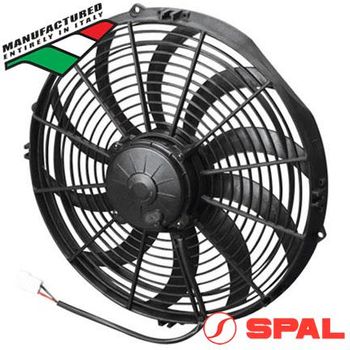

The SPAL EF3657 14" Thermo Fan is a premium, high-capacity cooling solution designed for extreme automotive environments. Individually balanced for smooth operation and an extended service lifespan, this low-profile fan utilizes SPAL's rugged motor technology to maintain superior thermal efficiency under heavy mechanical loads. Configured as a high-efficiency puller unit, it mounts securely behind your radiator core.

Technical Specifications:

• SPAL Model Number: VA08-AP71/LL-53A
• US Part Number: 30102042
• Voltage: 12V DC
• Flow Type: Puller (Suction)
• Blade Diameter: 14 Inch (350mm)
• Blade Style: High-Output Straight Blade
• Airflow Capacity: 1841 CFM (3120 m³/h)
• Current Draw: 19.6 Amps
• Shroud Design: Integrated Protective Finger Guard
• Motor Protection Rating: IP68 Sealed Water & Dust-Proof

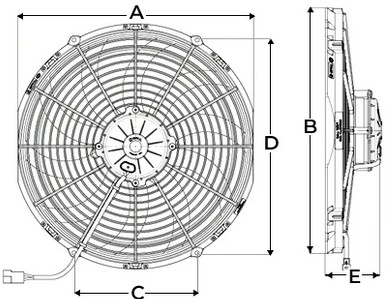

Physical Dimensions:

• A (Overall Diameter): 367mm
• B (Height): 382mm
• C (Center Width): 191mm
• D (Mounting Hole Grid): 331mm
• E (Thickness/Depth): 88mm
