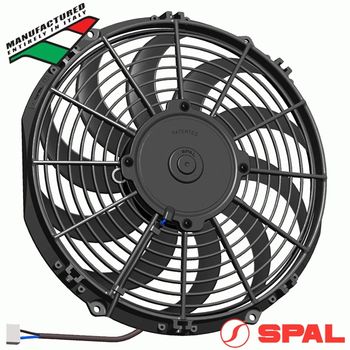

The SPAL EF3572 (VA10-AP70/LL-61A) is a high-performance 12V, 12-inch skew-blade puller fan engineered for maximum durability with a low-profile, fully sealed, waterproof (IP68) motor.


Common Applications:

• Performance & Drift Swaps: Fits tightly packaged engine bays (such as Nissan Silvia, 1JZ/2JZ, and Rotary builds) requiring high-CFM airflow.
• Off-Road & 4x4 Trucks: Highly favored for Toyota Land Cruisers & Nissan Patrols due to its completely submersible, mud-resistant IP68 waterproof motor.
• Custom Dual-Fan Shrouds: The ideal low-profile choice for running side-by-side configurations on large aftermarket aluminum radiators.


Technical Specifications:

• Model: VA10-AP70/LL-61A (EF3572)
• Performance: 1324 CFM / 2250 m³/h @ 13.5 Amps
• Dimensions: 12" (305mm) Blade Diameter, 87mm Depth
• Features: 12V DC, Skew (Curved) Quiet Blade, Puller (Suction), Integrated Finger Guard, IP68 Sealed Motor


Fitment & Sizing:

• A (Total Width): 321mm / 12.64"
• B (Total Height): 336mm / 13.23"
• C (Half Width): 168mm / 6.61"
• D (Mounting Centres): 292mm / 11.5"
• E (Total Depth): 87mm / 3.43"
