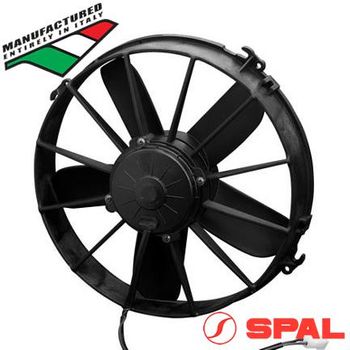

SPAL 12" High-Performance Puller Fan | 24V (EF3546)

Engineered by SPAL in Italy, the EF3546 12" Puller Fan is the industry standard for reliable, high-volume airflow in harsh environments. Featuring a fully sealed, IP68-rated motor, this fan is both water and dust-proof, ensuring long-term durability where generic aftermarket fans fail.

Common Applications

Due to its robust IP68-rated 24V motor, the EF3546 is widely used in commercial and heavy-duty environments, including:

• Commercial Transport: Cooling systems for trucks, buses, and coaches (A/C condenser & engine cooling).
• Heavy Machinery: Essential airflow for construction equipment, excavators, and mining vehicles.
• Agricultural Equipment: Reliable cooling for tractors, headers, and harvesters operating in dusty environments.
• Marine & Industrial: Engine room ventilation and auxiliary cooling where moisture and salt spray are concerns.
• Custom 24V Retrofits: Direct replacement for failing OEM fans in older industrial power units and generators.

Why Choose SPAL EF3546?

• Built for Reliability: Individually balanced for minimal vibration and extended service life.
• Commercial Grade: IP68-rated sealed motor protects against moisture, mud, and dust ingress.
• Optimized Airflow: Delivers a consistent 1711 CFM to keep heavy-duty cooling systems within optimal temperature ranges.

Technical Specifications

• SPAL Model #: VA01-BP70/LL-36A
• Voltage: 24V
• Airflow: 1711 CFM (2900 M3/H)
• Amperage Draw: 7.4A
• Blade Diameter: 12 inch (305mm)
• Blade Type: Straight (Puller)
• Shroud Type: Open Shroud

Dimensions

• A: 331mm
• B: 330mm
• C/D (Mounting Points): 238mm
• E (Depth): 95mm
