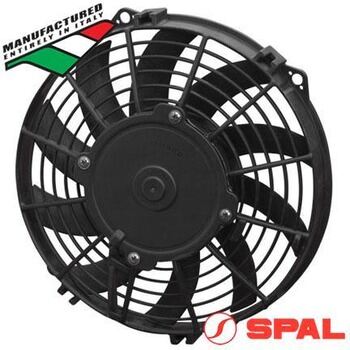

The SPAL EF3536 (VA07-BP12/C-58A) is a premium, heavy-duty 9-inch 24V electric thermo fan designed for high-demand commercial and industrial cooling applications. Featuring an advanced curved (skew) blade design, this 24-volt puller fan delivers a powerful 688 CFM of airflow with significantly reduced noise and maximum static pressure, making it the industry standard for Kiwi heavy transport and machinery fleets.

Part Number & Industrial Cross-Reference Matrix

If you are replacing an OEM or factory-fitted unit on commercial gear, the EF3536 is a direct match or premium drop-in replacement for these specific engineering codes:

• SPAL Global Model: VA07-BP12/C-58A
• Factory Part Number: 30100336 / SP-30100336
• Industrial Trade References: AC-3010.0336 / K91130 / 9.1130
• Barcode / Global Trade Item Number: 9316042089875

Applications: 24V Heavy Machinery & Commercial Cooling

Unlike standard 12V automotive fans, the EF3536 is engineered specifically for rugged 24V electrical systems across NZ's transport, agricultural, and earthmoving sectors:

• Commercial Trucks & Buses: Used for auxiliary engine cooling, oil cooling loops, and air conditioning condenser units on line-haul trucks and passenger buses.
• Earthmoving & Construction Equipment: A robust replacement fan for hydraulic oil coolers on excavators, loaders, and diesel power plants operating in high-dust environments.
• Agricultural Machinery: Ideal for tractors, harvesters, and forestry gear where reliable 24-volt climate control and cooling loops are critical.
• Refrigerated Transport: High-reliability fan utilized in transport refrigeration units to maintain strict climate control over long-haul routes.

EF3536 9" SPAL 24V Thermo Fan Specifications

• SPAL Fan Model / Part #: VA07-BP12/C-58A (Factory Code: 30100336)
• Voltage: 24V (Heavy Duty Commercial)
• Airflow Configuration: Puller (Mounts Behind Core to Draw Air)
• Blade Type: Curved Blade (Skew Design for Quiet, High-Static Pressure Performance)
• Airflow Capacity: 688 CFM (1170 M³/H)
• Current Draw: 4.0 Amps (Nominal) / 4.3 Amps (Maximum Load)
• Blade Diameter: 9 Inch (225mm)
• Unit Depth: 52mm (2.05")

Important Voltage Note: This is a 24-Volt fan engineered for commercial trucks, heavy plant machinery, and industrial systems. It will not operate on standard 12V passenger vehicle electrical systems. Please double-check your application's voltage requirement before ordering.
