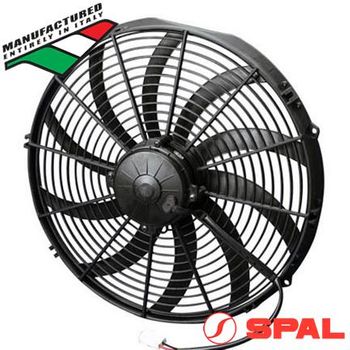

The SPAL EF3534 (VA18-AP71/LL-59A) is a massive, high-performance 16-inch 12V electric puller fan engineered for extreme thermal management. Boasting an impressive 2161 CFM of airflow, this curved-blade unit is designed to pull maximum air through large radiator cores. Physically in stock at our Kerikeri warehouse and ready for daily courier dispatch, this is the genuine Italian-made cooling solution for high-horsepower builds, heavy-towing setups, and motorsport applications that demand absolute reliability.

Part Number Cross-Reference Matrix

For seamless replacement or upgrading, the EF3534 is the industry benchmark for high-output 16-inch cooling. Use the reference below to ensure you have the correct unit for your high-load application:

• SPAL Global Model: VA18-AP71/LL-59A
• US Factory Part #: 30102049
• Alternative Trade / SKU References: EF3534 / SPAL-EF3534 / SPEF3534
• Design Note: This is a "Long Life" (LL) series fan, featuring upgraded brush systems for extended durability in the most demanding environments.

Applications: High-Performance Cooling

The EF3534 16" puller is selected by professional Kiwi engine builders and fabricators for the most demanding thermal scenarios:

• High-Horsepower & Race Builds: Provides the massive airflow required for drag cars, drift vehicles, and time-attack builds generating significant heat.
• Heavy Towing & 4WD: The ultimate upgrade for touring rigs and trucks that face high engine temps during heavy towing or steep climbs.
• Large Core Radiators: Specifically designed to maintain static pressure across large-surface-area aluminum radiators.
• Harsh Environment Durability: Features an IP68-rated, fully sealed motor to protect against the dust, grit, and water ingress typical of off-road and rally competition.

EF3534 16" SPAL 12V High-Output Thermo Fan Specifications

• SPAL Fan Model: VA18-AP71/LL-59A
• Voltage: 12V
• Airflow Configuration: Puller (Mounts Behind Core to Pull Air Through)
• Blade & Shroud Type: Curved Blade / Integrated Finger Guard
• Airflow Capacity: 2161 CFM (3671 M³/H)
• Current Draw: 19.6 - 21.3 Amps (High-performance draw)
• Blade Diameter: 16 Inch (406mm)

Physical Dimensions (Verified Millimetres)

• A (Overall Width): 400mm
• B (Overall Height): 414mm
• C (Total Depth at Motor): 207mm
• D (Mounting Hole Spacing): 358mm
• E (Motor Housing Depth): 88mm

Technical Note: This is a high-amperage fan (approx. 20A). Please ensure your wiring, relay, and fuse setup are rated for high-draw performance cooling. Account for the 207mm total depth (Dimension C) when checking clearance behind your engine block.
