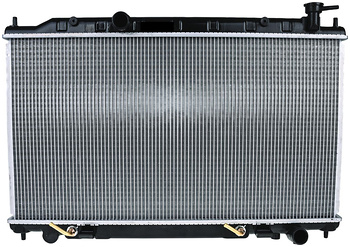

NZA925X is a replacement engine cooling radiator for selected Nissan Maxima J31 3.5 V6 Auto models. It combines an aluminium core with plastic tanks.

Selected Vehicle Applications:

• Nissan Maxima J31 3.5L V6 VQ35DE petrol, automatic, 03/08

Technical Specifications:

• Transmission: Automatic
• Core Construction: Aluminium with plastic end tanks
• Core Dimensions: 730x400x16mm
• Hose Outlets: 36mm inlet, 36mm outlet
• Header Plates: 757 × 47 mm top and bottom
• Oil Cooler Size: 350 mm

Note: Core measurements describe the cooling matrix only, excluding tanks and mounting brackets.

Cross-Reference Part Numbers:

• OEM: 21410-9Y000, 21410-9Y00A
• Jayrad: JR925J
• Adrad: NIS045
• Koyorad: PL021510
• Repco: RAD925X

Fitment Note:

Please confirm mounting positions, hose connections, transmission cooler fittings, and physical dimensions against your existing factory radiator prior to installation.

Always use the vehicle manufacturer’s specified coolant type and bleeding procedure when fitting. Inspect hoses, cap, and cooling fans as part of installation.

Warranty Details

Duration: 2 years or 50,000 kilometres (whichever happens first).
