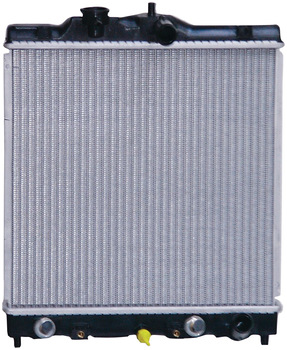

NZA533X is a replacement engine cooling radiator for selected Honda Civic / CRX Auto models. It combines an aluminium core with plastic tanks.

Selected Vehicle Applications:

• Honda Civic/CRX, automatic

Technical Specifications:

• Transmission: Automatic
• Core Construction: Aluminium with plastic end tanks
• Core Dimensions: 350x350x16mm
• Hose Outlets: 28mm inlet, 28mm outlet
• Header Plates: 370 × 48 mm top and bottom
• Oil Cooler Size: 200 mm

Note: Core measurements describe the cooling matrix only, excluding tanks and mounting brackets.

Cross-Reference Part Numbers:

• OEM: 19010-P08-003, 19010-P28-A51
• Jayrad: JR533J
• Adrad: HON012
• Koyorad: PL080330
• Repco: RAD533X

Fitment Note:

Please confirm mounting positions, hose connections, transmission cooler fittings, and physical dimensions against your existing factory radiator prior to installation. This part is specified with 28 mm inlet and outlet connections. Measure the original connections, as Civic radiator versions can differ.

Always use the vehicle manufacturer’s specified coolant type and bleeding procedure when fitting. Inspect hoses, cap, and cooling fans as part of installation.

Warranty Details

Duration: 2 years or 50,000 kilometres (whichever happens first).
