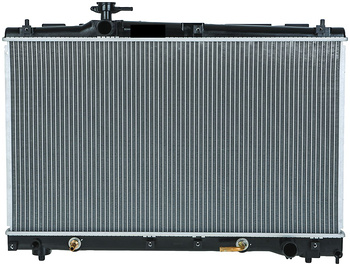

NZA1857X is a replacement engine cooling radiator for selected Toyota Avensis Verso ACM21 Auto models. It combines an aluminium core with plastic tanks.

Selected Vehicle Applications:

• Toyota Avensis Verso ACM21, automatic

Technical Specifications:

• NZA Part Number: NZA1857X
• Transmission: Automatic
• Core Construction: Aluminium with plastic end tanks
• Core Dimensions: 728x425x26mm
• Hose Outlets: 34mm inlet, 35mm outlet

Note: Core measurements describe the cooling matrix only, excluding tanks and mounting brackets.

Cross-Reference Part Numbers:

• OEM: 16400-28230, 16400-28320
• Jayrad: JR1857J
• Adrad: TOY115
• Koyorad: PL011590
• Repco: RAD1857X

Fitment Note:

Please confirm mounting positions, hose connections, transmission cooler fittings, and physical dimensions against your existing factory radiator prior to installation.

Always use the vehicle manufacturer’s specified coolant type and bleeding procedure when fitting. Inspect hoses, cap, and cooling fans as part of installation.

Warranty Details

Duration: 2 years or 50,000 kilometres (whichever happens first).
