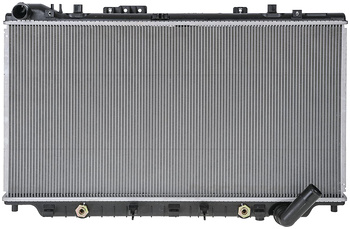

NZA1778X is a replacement engine cooling radiator for selected Holden Commodore VE/VF 3.0/3.6 V6 models. It combines an aluminium core with plastic tanks.

Selected Vehicle Applications:

• Holden Commodore VE/VF 3.0/3.6 V6
• Holden Commodore VF 3.6L V6 LFX, 16/17
• Holden Commodore VF 3.0L V6 LFW, 16/17

Technical Specifications:

• NZA Part Number: NZA1778X
• Transmission: Automatic / Manual
• Core Construction: Aluminium with plastic end tanks
• Core Dimensions: 790x416x28mm
• Hose Outlets: 35mm inlet, 34mm outlet

Note: Core measurements describe the cooling matrix only, excluding tanks and mounting brackets.

Cross-Reference Part Numbers:

• OEM: 92252063
• Jayrad: JR1674J
• Adrad: HOL041
• Koyorad: PL012111
• Repco: RAD1778X

Fitment Note:

Please confirm mounting positions, hose connections, transmission cooler fittings, and physical dimensions against your existing factory radiator prior to installation. Match the original transmission cooler arrangement. Compare the fan-shroud fixing style. VE Series I and Series II use different radiator and fan-shroud arrangements.

Always use the vehicle manufacturer’s specified coolant type and bleeding procedure when fitting. Inspect hoses, cap, and cooling fans as part of installation.

Warranty Details

Duration: 2 years or 50,000 kilometres (whichever happens first).
