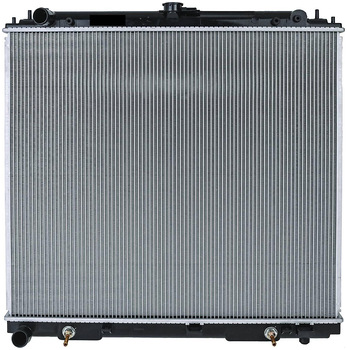

NZA1757X is a replacement engine cooling radiator for selected Nissan Navara D40 Spain-Built Auto models. It combines an aluminium core with plastic tanks.

Selected Vehicle Applications:

• Nissan Navara D40 2.5L YD25DDTi turbo diesel, automatic, Spain-built, 13/15

Technical Specifications:

• NZA Part Number: NZA1757X
• Transmission: Automatic
• Core Construction: Aluminium with plastic end tanks
• Core Dimensions: 688x600x36mm
• Hose Outlets: 35mm inlet, 35mm outlet

Note: Core measurements describe the cooling matrix only, excluding tanks and mounting brackets.

Cross-Reference Part Numbers:

• OEM: 21400-EB300, 21400-EB30A
• Jayrad: JR1757J
• Adrad: NIS054
• Koyorad: PL021829
• Repco: RAD1757X

Fitment Note:

Please confirm mounting positions, hose connections, transmission cooler fittings, and physical dimensions against your existing factory radiator prior to installation. Confirm whether the vehicle was built in Spain or Thailand; D40 radiator versions differ.

Always use the vehicle manufacturer’s specified coolant type and bleeding procedure when fitting. Inspect hoses, cap, and cooling fans as part of installation.

Warranty Details

Duration: 2 years or 50,000 kilometres (whichever happens first).
